Last Modified: 11-27-2007 |
1.6 C |
|
Service Category: Audio/Visual/Telematics |
Section: Park Assist/Monitoring |
|
Model Year: 2008 |
Model: LX570 |
Doc ID: RM000002INN00DX |
|
Title: PARK ASSIST / MONITORING: INTUITIVE PARKING ASSIST SYSTEM: DESCRIPTION (2008 LX570) |
|
DTC
|
C1AED
|
Rear Sensor Communication Malfunction
|
DESCRIPTION
This DTC is stored when there is an open or short circuit in the communication line between the rear sensors and the ECU, or when there is a malfunction in a rear sensor.
|
DTC Code
|
DTC Detection Condition
|
Trouble Area
|
|
C1AED
|
An open or short circuit in the communication line between the rear sensors and ECU or a malfunction in a rear sensor during initialization mode after the engine switch is turned on (IG).
|
-
Rear ultrasonic sensor circuit
-
Parking assist ECU
|

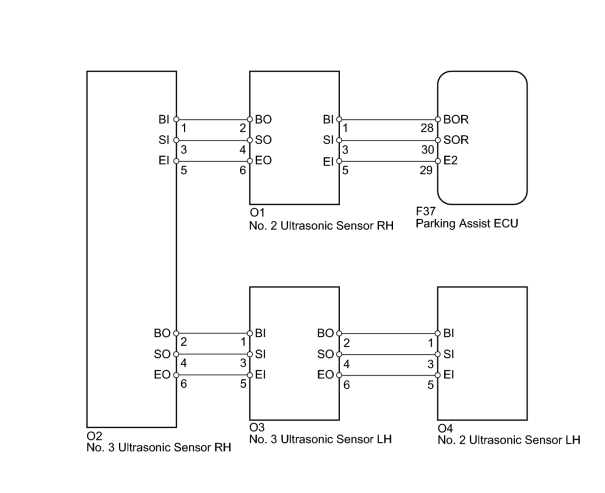

WIRING DIAGRAM
INSPECTION PROCEDURE
PROCEDURE
(a) Clear the DTCs
.
(b) Check for DTCs
.
Result
|
Result
|
Proceed to
|
|
DTC C1AED is output
|
A
|
|
No DTC is output
|
B
|
| A |
|
|
|
2.
|
CHECK PARKING ASSIST ECU
|
(a) Measure the voltage according to the value(s) in the table below.
Standard Voltage:
|
Tester Connection
|
Condition
|
Specified Condition
|
|
F37-28 (BOR) - Body ground
|
Engine switch on (IG)
|
7.2 to 8.8 V
|
(b) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection
|
Condition
|
Specified Condition
|
|
F37-29 (E2) - Body ground
|
Always
|
Below 1 Ω
|
| OK |
|
|
|
3.
|

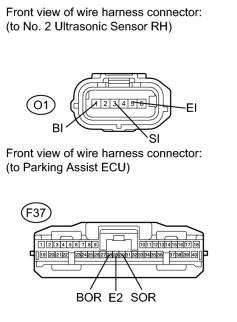

CHECK HARNESS AND CONNECTOR (NO. 2 ULTRASONIC SENSOR RH - PARKING ASSIST ECU)
|
(a) Disconnect the O1 sensor connector.
(b) Disconnect the F37 ECU connector.
(c) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection
|
Condition
|
Specified Condition
|
|
O1-1 (BI) - F37-28 (BOR)
|
Always
|
Below 1 Ω
|
|
O1-3 (SI) - F37-30 (SOR)
|
Always
|
Below 1 Ω
|
|
O1-5 (EI) - F37-29 (E2)
|
Always
|
Below 1 Ω
|
|
O1-1 (BI) - Body ground
|
Always
|
10 kΩ or higher
|
|
O1-3 (SI) - Body ground
|
Always
|
10 kΩ or higher
|
|
O1-5 (EI) - Body ground
|
Always
|
10 kΩ or higher
|
| OK |
|
|
|
4.
|

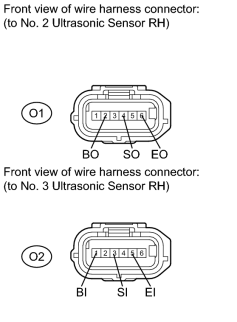

CHECK HARNESS AND CONNECTOR (NO. 2 ULTRASONIC SENSOR RH - NO. 3 ULTRASONIC SENSOR RH)
|
(a) Disconnect the O1 and O2 sensor connectors.
(b) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection
|
Condition
|
Specified Condition
|
|
O1-2 (BO) - O2-1 (BI)
|
Always
|
Below 1 Ω
|
|
O1-4 (SO) - O2-3 (SI)
|
Always
|
Below 1 Ω
|
|
O1-6 (EO) - O2-5 (EI)
|
Always
|
Below 1 Ω
|
|
O1-2 (BO) - Body ground
|
Always
|
10 kΩ or higher
|
|
O1-4 (SO) - Body ground
|
Always
|
10 kΩ or higher
|
|
O1-6 (EO) - Body ground
|
Always
|
10 kΩ or higher
|
| OK |
|
|
|
5.
|
CHECK HARNESS AND CONNECTOR (NO. 3 ULTRASONIC SENSOR RH - NO. 3 ULTRASONIC SENSOR LH)
|
(a) Disconnect the O2 and O3 sensor connectors.
(b) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection
|
Condition
|
Specified Condition
|
|
O2-2 (BO) - O3-1 (BI)
|
Always
|
Below 1 Ω
|
|
O2-4 (SO) - O3-3 (SI)
|
Always
|
Below 1 Ω
|
|
O2-6 (EO) - O3-5 (EI)
|
Always
|
Below 1 Ω
|
|
O2-2 (BO) - Body ground
|
Always
|
10 kΩ or higher
|
|
O2-4 (SO) - Body ground
|
Always
|
10 kΩ or higher
|
|
O2-6 (EO) - Body ground
|
Always
|
10 kΩ or higher
|
| OK |
|
|
|
6.
|

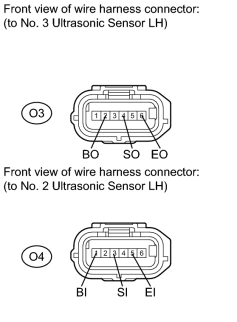

CHECK HARNESS AND CONNECTOR (NO. 3 ULTRASONIC SENSOR LH - NO. 2 ULTRASONIC SENSOR LH)
|
(a) Disconnect the O3 and O4 sensor connectors.
(b) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection
|
Condition
|
Specified Condition
|
|
O3-2 (BO) - O4-1 (BI)
|
Always
|
Below 1 Ω
|
|
O3-4 (SO) - O4-3 (SI)
|
Always
|
Below 1 Ω
|
|
O3-6 (EO) - O4-5 (EI)
|
Always
|
Below 1 Ω
|
|
O3-2 (BO) - Body ground
|
Always
|
10 kΩ or higher
|
|
O3-4 (SO) - Body ground
|
Always
|
10 kΩ or higher
|
|
O3-6 (EO) - Body ground
|
Always
|
10 kΩ or higher
|
| OK |
|
|
(a) Clear the DTCs
.
(b) Check for DTCs
.
Result
|
Result
|
Proceed to
|
|
DTC C1AED is output and multi-information display indicates open circuit (rear left, rear center and rear right)
|
A
|
|
DTC C1AED is output and multi-information display indicates open circuit (rear left and rear center)
|
B
|
|
No DTCs are output
|
C
|
| A |
|
|
|
8.
|
INSPECT NO. 2 ULTRASONIC SENSOR RH
|
|
(a) Disconnect the O1 sensor connector.
|
(b) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection
|
Condition
|
Specified Condition
|
|
O1-1 (BI) - O1-5 (EI)
|
Always
|
10 kΩ or higher
|
|
O1-1 (BI) - O1-2 (BO)
|
Always
|
10 kΩ or higher
|
|
O1-3 (SI) - O1-4 (SO)
|
Always
|
Below 1 Ω
|
|
O1-5 (EI) - O1-6 (EO)
|
Always
|
Below 1 Ω
|
| OK |
|
|
(a) Clear the DTCs
.
(b) Check for DTCs
.
Result
|
Result
|
Proceed to
|
|
DTC C1AED is output and multi-information display indicates open circuit (rear left, rear center and rear right)
|
A
|
|
DTC C1AED is output and multi-information display indicates open circuit (rear left and rear center)
|
B
|
|
No DTC is output
|
C
|
| A |
|
|
|
10.
|
REPLACE NO. 2 ULTRASONIC SENSOR LH
|
(a) Replace the No. 2 ultrasonic sensor LH with a normally functioning sensor
.
| NEXT |
|
|
(a) Clear the DTCs
.
(b) Check for DTCs
.
Result
|
Result
|
Proceed to
|
|
DTC C1AED is output and multi-information display indicates open circuit (rear left and rear center)
|
A
|
|
DTC C1AED is output and multi-information display indicates open circuit (rear left, rear center and rear right)
|
B
|
|
No DTC is output
|
C
|
| A |
|
|
|
12.
|
INSPECT NO. 3 ULTRASONIC SENSOR RH
|
|
(a) Disconnect the O2 sensor connector.
|
(b) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection
|
Condition
|
Specified Condition
|
|
O2-1 (BI) - O2-5 (EI)
|
Always
|
10 kΩ or higher
|
|
O2-1 (BI) - O2-2 (BO)
|
Always
|
10 kΩ or higher
|
|
O2-3 (SI) - O2-4 (SO)
|
Always
|
Below 1 Ω
|
|
O2-5 (EI) - O2-6 (EO)
|
Always
|
Below 1 Ω
|
| OK |
|
|
(a) Clear the DTCs
.
(b) Check for DTCs
.
Result
|
Result
|
Proceed to
|
|
DTC C1AED is output and multi-information display indicates open circuit (rear left and rear center)
|
A
|
|
No DTC is output
|
B
|
| A |
|
|
|
14.
|
INSPECT NO. 3 ULTRASONIC SENSOR LH
|
|
(a) Disconnect O3 sensor connector.
|
(b) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection
|
Condition
|
Specified Condition
|
|
O3-1 (BI) - O3-5 (EI)
|
Always
|
10 kΩ or higher
|
|
O3-1 (BI) - O3-2 (BO)
|
Always
|
10 kΩ or higher
|
|
O3-3 (SI) - O3-4 (SO)
|
Always
|
Below 1 Ω
|
|
O3-5 (EI) - O3-6 (EO)
|
Always
|
Below 1 Ω
|
| OK |
|
|
(a) Clear the DTCs
.
(b) Check for DTCs
.
Result
|
Result
|
Proceed to
|
|
DTC C1AED is output and multi-information display indicates open circuit (rear left, rear center and rear right)
|
A
|
|
No DTC is output
|
B
|
| A |
|
|
|
