- L22-5 (NTS3) - Body ground
- L22-24 (NTS2) - Body ground
- L25-3 (NTS4) - Body ground
| Last Modified: 11-27-2007 | 1.6 U | |
| Service Category: Audio/Visual/Telematics | Section: Audio/Video | |
| Model Year: 2008 | Model: LX570 | Doc ID: RM000002IPS007X |
| Title: AUDIO / VIDEO: REAR SEAT ENTERTAINMENT SYSTEM: TERMINALS OF ECU (2008 LX570) | ||
TERMINALS OF ECU

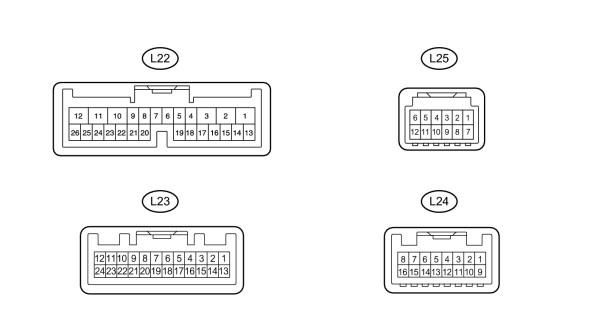

1. CHECK MULTI-DISPLAY SELECTOR (RSE ECU)
|
Terminal No. (Symbol) |
Wiring Color |
Terminal Description |
Condition |
Specified Condition |
|---|---|---|---|---|
|
L22-1 (+B) - L22-12 (GND) |
L - W-B |
Battery |
Always |
11 to 14 V |
|
L22-6 (ACC) - L22-12 (GND) |
GR - W-B |
Ignition (ACC) |
Engine switch on (ACC) |
11 to 14 V |
|
L25-6 (ADPI) - L22-12 (GND) |
R - W-B |
Ground |
Always |
Below 1 Ω |
|
L22-11 (GND1) - Body ground |
W - Body ground |
Ground |
Always |
Below 1 Ω |
|
L22-15 (SG1) - Body ground |
Shielded - Body ground |
Ground |
Always |
Below 1 Ω |
|
L22-14 (HP1L) - L22-12 (GND) |
W - W-B |
Sound signal (Output) |
RSE system playing (Headphone) |
A waveform synchronized with sound is output |
|
L22-13 (HP1R) - L22-12 (GND) |
B - W-B |
Sound signal (Output) |
RSE system playing (Headphone) |
A waveform synchronized with sound is output |
|
L25-11 (SLDE) - Body ground |
Shielded - Body ground |
Ground |
Always |
Below 1 Ω |
|
L25-9 (TVL+) - L22-12 (GND) |
W - W-B |
Sound signal |
External device system playing (At time of VTR jack use) |
A waveform synchronized with sound is output |
|
L25-7 (TVR+) - L22-12 (GND) |
B - W-B |
Sound signal |
External device system playing (At time of VTR jack use) |
A waveform synchronized with sound is output |
|
L22-5 (NTS3) - L22-12 (GND) |
B - W-B |
Display signal |
Display on (Television display assembly) |
Pulse generation (see waveform 1) |
|
L22-4 (SGN3) - Body ground |
W - Body ground |
Ground |
Always |
Below 1 Ω |
|
L22-19 (SLDC) - Body ground |
Shielded - Body ground |
Ground |
Always |
Below 1 Ω |
|
L22-18 (SG2) - Body ground |
Shielded - Body ground |
Ground |
Always |
Below 1 Ω |
|
L22-17 (HP2L) - L22-12 (GND) |
W - W-B |
Sound signal (Output) |
RSE system playing (Headphone) |
A waveform synchronized with sound is output |
|
L22-16 (HP2R) - L22-12 (GND) |
B - W-B |
Sound signal (Output) |
RSE system playing (Headphone) |
A waveform synchronized with sound is output |
|
L25-4 (SGN4) - Body ground |
W - Body ground |
Ground |
Always |
Below 1 Ω |
|
L25-3 (NTS4) - L22-12 (GND) |
B - W-B |
Display signal |
External device system displayed (At time of VTR jack use) |
Pulse generation (see waveform 1) |
|
L25-5 (SLDD) - Body ground |
Shielded - Body ground |
Ground |
Always |
Below 1 Ω |
|
L23-13 (L6-) - L22-12 (GND) |
R - W-B |
Sound signal (Output) |
DVD system playing |
A waveform synchronized with sound is output |
|
L23-14 (L6+) - L22-12 (GND) |
G - W-B |
Sound signal (Output) |
DVD system playing |
A waveform synchronized with sound is output |
|
L23-15 (R6-) - L22-12 (GND) |
W - W-B |
Sound signal (Output) |
DVD system playing |
A waveform synchronized with sound is output |
|
L23-16 (R6+) - L22-12 (GND) |
B - W-B |
Sound signal (Output) |
DVD system playing |
A waveform synchronized with sound is output |
|
L23-17 (SLD6) - Body ground |
Shielded - Body ground |
Ground |
Always |
Below 1 Ω |
|
L23-18 (MUT6) - L22-12 (GND) |
G - W-B |
Mute signal |
RSE system playing → changing modes |
3.5 V or higher → Below 1 V |
|
L22-2 (+B1) - L22-12 (GND) |
L - W-B |
Battery |
Always |
11 to 14 V |
|
L22-12 (GND) - Body ground |
W-B - Body ground |
Ground |
Always |
Below 1 Ω |
|
L22-7 (ACC1) - L22-12 (GND) |
GR - W-B |
Ignition (ACC) |
Engine switch on (ACC) |
11 to 14 V |
|
L23-4 (L5-) - L22-12 (GND) |
R - W-B |
Sound signal (Input) |
RSE system is playing |
A waveform synchronized with sound is output |
|
L23-3 (L5+) - L22-12 (GND) |
G - W-B |
Sound signal (Input) |
RSE system is playing |
A waveform synchronized with sound is output |
|
L23-2 (R5-) - L22-12 (GND) |
W - W-B |
Sound signal (Input) |
RSE system is playing |
A waveform synchronized with sound is output |
|
L23-1 (R5+) - L22-12 (GND) |
B - W-B |
Sound signal (Input) |
RSE system is playing |
A waveform synchronized with sound is output |
|
L23-6 (MUT5) - L22-12 (GND) |
G - W-B |
Mute signal |
RSE system is playing → changing modes |
3.5 V or higher → Below 1 V |
|
L23-11 (L3-) - L22-12 (GND) |
G - W-B |
Sound signal (Output) |
RSE system is playing |
A waveform synchronized with sound is output |
|
L23-10 (L3+) - L22-12 (GND) |
R - W-B |
Sound signal (Output) |
RSE system is playing |
A waveform synchronized with sound is output |
|
L23-9 (R3-) - L22-12 (GND) |
W - W-B |
Sound signal (Output) |
RSE system is playing |
A waveform synchronized with sound is output |
|
L23-8 (R3+) - L22-12 (GND) |
B - W-B |
Sound signal (Output) |
RSE system is playing |
A waveform synchronized with sound is output |
|
L23-7 (MUT3) - L22-12 (GND) |
B - W-B |
Mute signal |
RSE system is playing → changing modes |
3.5 V or higher → Below 1 V |
|
L23-19 (MUT4) - L22-12 (GND) |
G - W-B |
Mute signal |
Disc player playing → changing modes |
3.5 V or higher → Below 1 V |
|
L23-20 (L4-) - L22-12 (GND) |
R - W-B |
Sound signal (Input) |
Disc player playing |
A waveform synchronized with sound is output |
|
L23-21 (L4+) - L22-12 (GND) |
L - W-B |
Sound signal (Input) |
Disc player playing |
A waveform synchronized with sound is output |
|
L23-22 (R4-) - L22-12 (GND) |
W - W-B |
Sound signal (Input) |
Disc player playing |
A waveform synchronized with sound is output |
|
L23-23 (R4+) - L22-12 (GND) |
B - W-B |
Sound signal (Input) |
Disc player playing |
A waveform synchronized with sound is output |
|
L22-24 (NTS2) - L22-12 (GND) |
B - W-B |
DVD display signal |
Disc player playing DVD system displayed |
Pulse generation (see waveform 1) |
|
L22-25 (SGN2) - Body ground |
W - Body ground |
Ground |
Always |
Below 1 Ω |
|
L22-26 (SLDB) - L22 - 12 (GND) |
Shielded - Body ground |
Ground |
Always |
Below 1 Ω |
|
L24-11 (CNT2) - L22-12 (GND) |
V - W-B |
Multi-display selector signal input 2 control signal |
RSE system playing |
3.5 V or higher → Below 1 V |
|
L24-12 (CNT3) - L22-12 (GND) |
W - W-B |
Multi-display selector signal input 3 control signal |
RSE system playing |
3.5 V or higher → Below 1 V |
|
L24-13 (CNT4) - L22-12 (GND) |
R - W-B |
Multi-display selector signal input 4 control signal |
RSE system playing |
3.5 V or higher → Below 1 V |
|
L24-14 (CNT5) - L22-12 (GND) |
L - W-B |
Multi-display selector signal input 5 control signal |
RSE system playing |
3.5 V or higher → Below 1 V |
|
L24-9 (ADPO) - L22-12 (GND) |
B - W-B |
Ground |
Always |
Below 1 Ω |
|
L24-2 (L1-) - L22-12 (GND) |
G - W-B |
Sound signal (Output) |
RSE system playing |
A waveform synchronized with sound is output |
|
L24-3 (L1+) - L22-12 (GND) |
R - W-B |
Sound signal (Output) |
RSE system playing |
A waveform synchronized with sound is output |
|
L24-4 (R1-) - L22-12 (GND) |
W - W-B |
Sound signal (Output) |
RSE system playing |
A waveform synchronized with sound is output |
|
L24-5 (R1+) - L22-12 (GND) |
B - W-B |
Sound signal (Output) |
RSE system playing |
A waveform synchronized with sound is output |
|
L24-1 (SLD1) - Body ground |
Shielded - Body ground |
Ground |
Always |
Below 1 Ω |
|
L24-6 (MUT1) - L22-12 (GND) |
G - W-B |
Mute signal |
RSE system playing → changing modes |
3.5 V or higher → Below 1 V |
|
(a) Using an oscilloscope, check the waveform.
|

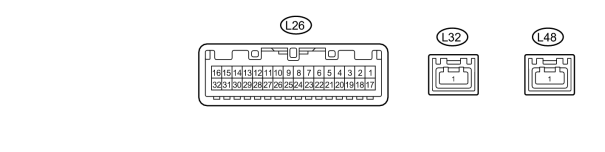

2. CHECK TELEVISION DISPLAY ASSEMBLY
|
Terminal No. (Symbol) |
Wiring Color |
Terminal Description |
Condition |
Specified Condition |
|---|---|---|---|---|
|
L26-16 (GND) - Body ground |
W - Body ground |
Ground |
Always |
Below 1 Ω |
|
L26-3 (R1+) - L26-16 (GND) |
B - W |
Sound signal (Input) |
RSE system sounding (Headphone) |
A waveform synchronized with sound is output |
|
L26-4 (R1-) - L26-16 (GND) |
W - W |
Sound signal (Input) |
RSE system sounding (Headphone) |
A waveform synchronized with sound is output |
|
L26-5 (L1+) - L26-16 (GND) |
R - W |
Sound signal (Input) |
RSE system sounding (Headphone) |
A waveform synchronized with sound is output |
|
L26-6 (L1-) - L26-16 (GND) |
G - W |
Sound signal (Input) |
RSE system sounding (Headphone) |
A waveform synchronized with sound is output |
|
L26-29 (ACC) - L26-16 (GND) |
GR - W |
Ignition (ACC) |
Engine switch on (ACC) |
11 to 14 V |
|
L26-14 (+B) - L26-16 (GND) |
L - W |
Battery |
Always |
11 to 14 V |
|
L26-19 (TX1+) - L26-16 (GND) |
W - W |
AVC-LAN communication signal |
Engine switch on (ACC) |
2 to 3 V |
|
L26-20 (TX1-) - L26-16 (GND) |
L - W |
AVC-LAN communication signal |
Engine switch on (ACC) |
2 to 3 V |
|
L26-8 (SLD) - Body ground |
Shielded - Body ground |
Ground |
Always |
Below 1 Ω |
|
L26-10 (SGN1) - Body ground |
W - Body ground |
Ground |
Always |
Below 1 Ω |
|
L26-9 (NTSC) - L26-16 (GND) |
B - W |
Display signal |
Television display displayed |
Pulse generation (see waveform 1) |
|
L26-11 (ADPG) - L26-16 (GND) |
B - W |
Ground |
Always |
Below 1 Ω |
|
L26-23 (MUT1) - L26-16 (GND) |
G - W |
Mute signal |
RSE system playing → changing modes |
3.5 V or higher → Below 1 V |
|
L26-25 (CNT2) - L26-16 (GND) |
V - W |
Multi-display selector signal input 2 control signal |
RSE system playing |
3.5 V or higher → Below 1 V |
|
L26-26 (CNT3) - L26-16 (GND) |
W - W |
Multi-display selector signal input 3 control signal |
RSE system playing |
3.5 V or higher → Below 1 V |
|
L26-27 (CNT4) - L26-16 (GND) |
R - W |
Multi-display selector signal input 4 control signal |
RSE system playing |
3.5 V or higher → Below 1 V |
|
L26-28 (CNT5) - L26-16 (GND) |
L - W |
Multi-display selector signal input 5 control signal |
RSE system playing |
3.5 V or higher → Below 1 V |
|
L32-1 (GVIF) - L26-16 (GND) |
B - W |
Display image signal |
- |
- |
|
L48-1 (GVIF) - L26-16 (GND) |
B - W |
Display image signal |
- |
- |
|
|
(a) Using an oscilloscope, check the waveform.
|
3. CHECK HEADPHONE TERMINAL
|
Terminal No. (Symbol) |
Wiring Color |
Terminal Description |
Condition |
Specified Condition |
|---|---|---|---|---|
|
9 (HP1R) - 11 (SGN1) |
B - Shielded |
Sound signal (Input) |
External device system sounding (At time of VTR jack use) |
A waveform synchronized with sound is output |
|
10 (HP1L) - 11 (SGN1) |
W - Shielded |
Sound signal (Input) |
External device system sounding (At time of VTR jack use) |
A waveform synchronized with sound is output |
|
11 (SGN1) - Body ground |
Shielded - Body ground |
Ground |
Always |
Below 1 Ω |
|
1 (HP2R) - 3 (SGN2) |
B - Shielded |
Sound signal (Input) |
External device system sounding (At time of VTR jack use) |
A waveform synchronized with sound is output |
|
2 (HP2L) - 3 (SGN2) |
W - Shielded |
Sound signal (Input) |
External device system sounding (At time of VTR jack use) |
A waveform synchronized with sound is output |
|
3 (SGN2) - Body ground |
Shielded - Body ground |
Ground |
Always |
Below 1 Ω |
|
5 (VAR+) - Body ground |
B - Body ground |
External audio right sound output signal |
External device system sounding (At time of VTR jack use) |
A waveform synchronized with sound is output |
|
6 (VAL+) - Body ground |
W - Body ground |
External audio left sound output signal |
External device system sounding (At time of VTR jack use) |
A waveform synchronized with sound is output |
|
7 (VA-) - Body ground |
Shielded - Body ground |
Ground |
Always |
Below 1 Ω |
|
8 (ADPG) - Body ground |
R - Body ground |
Ground |
Always |
Below 1 Ω |
|
13 (VV+) - Body ground |
B - Body ground |
Display signal |
VTR displayed |
Pulse generation |
|
14 (VV-) - Body ground |
W - Body ground |
Ground |
Always |
Below 1 Ω |
|
15 (SG) - Body ground |
Shielded - Body ground |
Ground |
Always |
Below 1 Ω |
4. CHECK RADIO RECEIVER
5. CHECK DISPLAY AND NAVIGATION MODULE DISPLAY OR MULTI-DISPLAY
|
|
