Title: PRE-COLLISION: PRE-COLLISION SYSTEM: DESCRIPTION (2008 LX570)

DTC

B2075

Passenger Side Seat Belt Buckle Switch Circuit Malfunction

DESCRIPTION

This DTC is stored when there is a malfunction in the front seat inner belt buckle switch circuit for the passenger side. The seat belt control ECU receives buckle switch condition information from the occupant classification ECU and the center airbag sensor via the CAN communication line and controls the pre-collision system.

When DTC B2075 is stored, DTC B1650 is also output.

DTC Code	DTC Detection Condition	Trouble Area
B2075	Malfunction in the front seat inner belt (buckle switch) circuit.	Front seat inner belt RH assembly Occupant classification ECU Center airbag sensor Seat belt control ECU CAN communication system

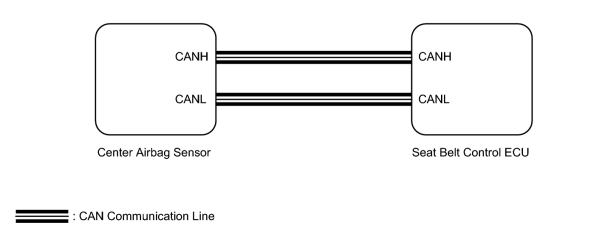

WIRING DIAGRAM

INSPECTION PROCEDURE

NOTICE:

If DTC B1650 is not cleared, DTC B2075 continues to be output.

PROCEDURE

1.	CHECK DTC (CAN COMMUNICATION SYSTEM)

(a) Use the Techstream to check if the CAN communication system is functioning normally .

OK:

DTC U0151 is not output.

2.	CHECK DTC (AIRBAG SYSTEM)

(a) Using the Techstream, enter the following menus: Body Electrical / SRS Airbag / Trouble Code.

(b) Clear the DTCs .

OK:

DTC B1650 is not output.

3.	CHECK DTC (PRE-COLLISION SYSTEM)

(a) Using the Techstream, enter the following menus: Body Electrical / Pre-Collision / Trouble Code.

(b) Clear the DTCs .

OK:

DTC B2075 is not output.
