| Last Modified: 11-27-2007 | 1.6 J | |
| Service Category: Vehicle Interior | Section: Heating/Air Conditioning | |
| Model Year: 2008 | Model: LX570 | Doc ID: RM000002LM3009X |
| Title: HEATING / AIR CONDITIONING: AIR CONDITIONING SYSTEM: DESCRIPTION (2008 LX570) | ||
|
Rear Magnetic Valve Circuit |
DESCRIPTION
The rear cooling unit expansion valve is controlled by the air conditioning amplifier assembly.

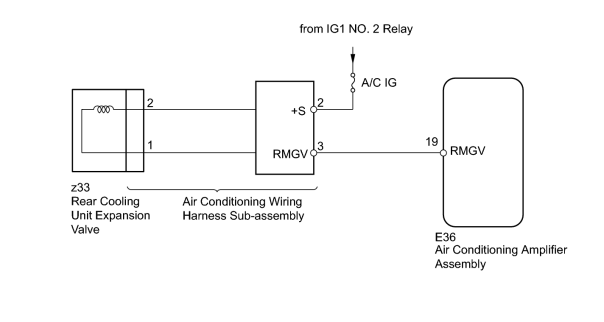

WIRING DIAGRAM
INSPECTION PROCEDURE
PROCEDURE
|
1. |
PERFORM ACTIVE TEST USING TECHSTREAM (REAR COOLING UNIT EXPANSION VALVE) |
(a) Select the Active Test, use the Techstream to generate a control command, and then check that the rear cooling unit expansion valve operates.
OK:
Rear magnetic valve operates normally.
Air Conditioner
|
Tester Display |
Test Part |
Control Range |
Diagnostic Note |
|---|---|---|---|
|
Rear A/C Mag Valve |
Rear Cooling Unit Expansion Valve |
ON or OFF |
- |
|
|
2. |
INSPECT FUSE (A/C IG) |
(a) Remove the A/C IG fuse from the cowl side junction block LH.
(b) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
A/C IG fuse |
Always |
Below 1 Ω |
|
|
3. |
CHECK HARNESS AND CONNECTOR (AIR CONDITIONING WIRING HARNESS - BATTERY) |
|
(a) Disconnect the air conditioning wiring harness sub-assembly connector. |
(b) Measure the voltage according to the value(s) in the table below.
Standard Voltage:
|
Tester Connection |
Switch Condition |
Specified Condition |
|---|---|---|
|
2 (+S) - Body ground |
Engine switch off |
Below 1 V |
|
Engine switch on (IG) |
11 to 14 V |
|
|
4. |

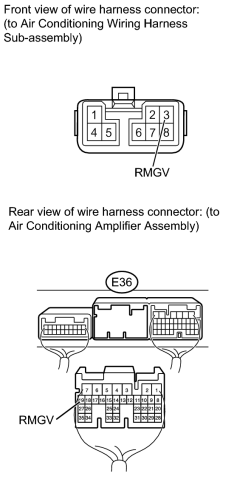

CHECK HARNESS AND CONNECTOR (AIR CONDITIONING WIRING HARNESS - AIR CONDITIONING AMPLIFIER) |
(a) Disconnect the air conditioning wiring harness sub-assembly connector.
(b) Disconnect the E36 amplifier connector.
(c) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
3 (RMGV) - E36-19 (RMGV) |
Always |
Below 1 Ω |
|
3 (RMGV) - Body ground |
Always |
10 kΩ or higher |
|
E36-19 (RMGV) - Body ground |
|
|
5. |
CHECK REAR COOLING UNIT EXPANSION VALVE (OPERATION) |
(a) Replace the rear cooling unit expansion valve
.
HINT:
Since the rear cooling unit expansion valve cannot be inspected while it is removed from the vehicle, replace the rear cooling unit expansion valve with a normal one and check that the condition returns to normal.
OK:
Same problem does not occur.
|
|
6. |
CHECK AIR CONDITIONING WIRING HARNESS SUB-ASSEMBLY (OPERATION) |
(a) Replace the air conditioning wiring harness sub-assembly with a normal one and check that the condition returns to normal.
OK:
Same problem does not occur.
|
|
|
