Title: WIPER / WASHER: WASHER MOTOR (for Front Side): REMOVAL (2008 LX570)

REMOVAL

1. REMOVE ENGINE ROOM SIDE COVER LH EXTERIOR PANELS / TRIM: RADIATOR GRILLE: REMOVAL (2008 LX570)+

2. REMOVE FRONT FENDER MUDGUARD LH EXTERIOR PANELS / TRIM: MUDGUARD: REMOVAL (2008 LX570)+

3. REMOVE HEIGHT CONTROL PROTECTOR PIPE SUSPENSION CONTROL: DAMPING FORCE CONTROL ACTUATOR (for Front Side): REMOVAL (2008 LX570)+

4. REMOVE SIDE STEP ASSEMBLY EXTERIOR PANELS / TRIM: SIDE STEP: REMOVAL (2008 LX570)+

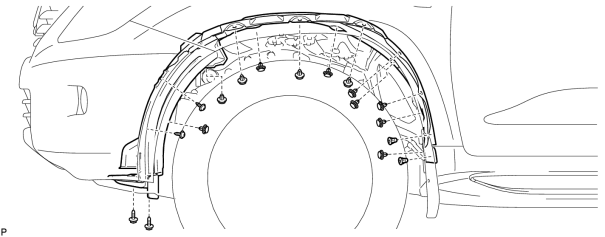

5. REMOVE FRONT FENDER LINER LH

(a) Remove the 2 screws.

(b) Using a T30 "TORX" socket, remove the 2 screws.

(c) Using a clip remover, remove the 2 grommets, 12 clips and fender liner.

6. DRAIN WASHER FLUID

(a) Remove the washer hose from the windshield washer motor and pump, and drain the washer fluid.

7. REMOVE WASHER INLET SUB-ASSEMBLY

(a) Using a clip remover, remove the clip and washer inlet.

8. REMOVE WINDSHIELD WASHER JAR ASSEMBLY

(a) w/ Headlight Cleaner System:

(1) Detach the clamp.

(2) Disconnect the 2 connectors.

(3) Disconnect the headlight cleaner hose.

(b) w/o Headlight Cleaner System:

(1) Detach the clamp.

(2) Disconnect the connector.

(c) Remove the 4 bolts. Then remove the windshield washer jar.

9. REMOVE WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY

(a) Remove the windshield washer motor and pump assembly together with the gasket in the direction shown in the illustration.

(b) Disconnect the connector.
