AUDIO / VIDEO: FRONT DOOR SPEAKER: REMOVAL (2008 LX570)

Home › Audio/Visual/Telematics › Audio/Video › FRONT DOOR SPEAKER

Last Modified: 11-27-2007		1.6 A
Service Category: Audio/Visual/Telematics	Section: Audio/Video
Model Year: 2008	Model: LX570	Doc ID: RM000002MK7008X
Title: AUDIO / VIDEO: FRONT DOOR SPEAKER: REMOVAL (2008 LX570)

REMOVAL

HINT:

Use the same procedures for the LH side and RH side.
The procedures listed below are for the LH side.

1. REMOVE ENGINE ROOM SIDE COVER LH

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

NOTICE:

w/ Navigation System:

After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.

When disconnecting the cable, some systems need to be initialized after the cable is reconnected .

3. REMOVE FRONT LOWER DOOR FRAME BRACKET GARNISH LH

4. REMOVE FRONT DOOR INSIDE HANDLE BEZEL PLUG LH

5. REMOVE FRONT UPPER ARMREST BASE PANEL LH

6. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH

7. REMOVE FRONT NO. 1 SPEAKER ASSEMBLY

(a) Disconnect the speaker connector.

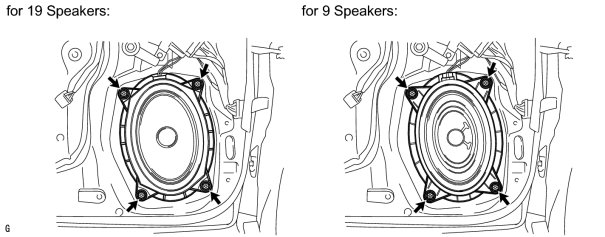

(b) Remove the 4 screws and speaker.

NOTICE:

Do not touch the cone part of the speaker.
