Title: AUDIO / VIDEO: REAR DOOR SPEAKER: REMOVAL (2008 LX570)

REMOVAL

HINT:

  • Use the same procedures for the LH side and RH side.
  • The procedures listed below are for the LH side.

1. REMOVE ENGINE ROOM SIDE COVER LH EXTERIOR PANELS / TRIM: RADIATOR GRILLE: REMOVAL (2008 LX570)+

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

NOTICE:

3. REMOVE REAR DOOR INSIDE HANDLE BEZEL PLUG LH DOOR / HATCH: REAR DOOR: DISASSEMBLY (2008 LX570)+

4. REMOVE REAR UPPER DOOR ARMREST BASE PANEL LH DOOR / HATCH: REAR DOOR: DISASSEMBLY (2008 LX570)+

5. REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY DOOR / HATCH: REAR DOOR: DISASSEMBLY (2008 LX570)+

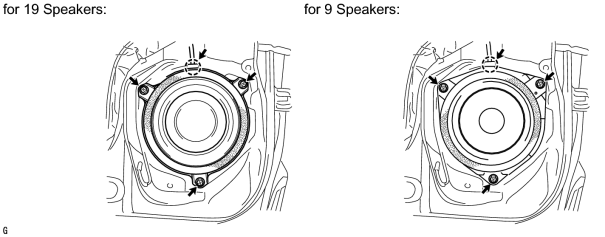

6. REMOVE REAR SPEAKER SET

(a) Disconnect the speaker connector.

(b) Remove the 3 screws.

(c) Detach the claw and remove the speaker.

NOTICE:

Do not touch the cone part of the speaker.

7. REMOVE REAR NO. 2 SPEAKER ASSEMBLY (for 19 Speakers)

(a) Disconnect the connector.

(b) Remove the 4 screws and speaker.

NOTICE:

Do not touch the cone part of the speaker.

8. REMOVE REAR NO. 3 SPEAKER ASSEMBLY (for 19 Speakers)

(a) Disconnect the connector.

(b) Detach the clamp.

(c) Remove the 2 screws and speaker.

NOTICE:

Do not touch the cone part of the speaker.
