SUPPLEMENTAL RESTRAINT SYSTEMS: SPIRAL CABLE: REMOVAL (2008 LX570)

Home › Vehicle Interior › Supplemental Restraint Systems › SPIRAL CABLE

Last Modified: 11-27-2007		1.6 A
Service Category: Vehicle Interior	Section: Supplemental Restraint Systems
Model Year: 2008	Model: LX570	Doc ID: RM000002O8X007X
Title: SUPPLEMENTAL RESTRAINT SYSTEMS: SPIRAL CABLE: REMOVAL (2008 LX570)

REMOVAL

1. REMOVE ENGINE ROOM SIDE COVER LH

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

NOTICE:

w/ Navigation System:

After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.

When disconnecting the cable, some systems need to be initialized after the cable is reconnected .

3. PLACE FRONT WHEELS FACING STRAIGHT AHEAD

4. REMOVE LOWER NO. 3 STEERING WHEEL COVER

5. REMOVE LOWER NO. 2 STEERING WHEEL COVER

6. REMOVE STEERING PAD

7. REMOVE STEERING WHEEL ASSEMBLY

8. REMOVE LOWER STEERING COLUMN COVER

9. REMOVE UPPER STEERING COLUMN COVER

10. REMOVE SPIRAL CABLE

(a) Disconnect the connectors from the spiral cable with steering sensor.

NOTICE:

When handling the airbag connector, take care not to damage the airbag wire harness.

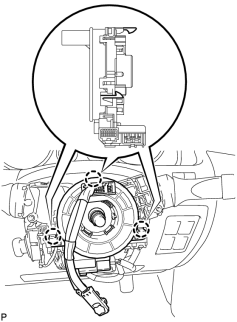

(b) Detach the 3 claws and remove the spiral cable with steering sensor.
