Home › Audio/Visual/Telematics › Audio/Video › REAR SEAT ENTERTAINMENT SYSTEM
Last Modified: 11-27-2007 1.6 J
Service Category: Audio/Visual/Telematics Section: Audio/Video
Model Year: 2008 Model: LX570 Doc ID: RM000002ROI009X
Title: AUDIO / VIDEO: REAR SEAT ENTERTAINMENT SYSTEM: DESCRIPTION (2008 LX570)

Display Signal Circuit between Multi-display and Television Display Assembly

DESCRIPTION

This is the display signal circuit from the multi-display to the television display.

HINT:

If the vehicle has a navigation system, "multi-display" refers to the "display and navigation module display".

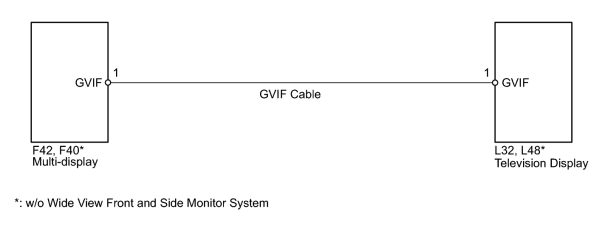

WIRING DIAGRAM

INSPECTION PROCEDURE

PROCEDURE

1.

REPLACE GVIF CABLE WITH NORMAL ONE AND CHECK

(a) Replace the GVIF cable with a normal one and check if the same problem occurs again.

OK:

Same problem does not occur.

OK

2.

REPLACE TELEVISION DISPLAY ASSEMBLY WITH NORMAL ONE AND CHECK

(a) Replace the television display with a normal one and check if the same problem occurs again AUDIO / VIDEO: TELEVISION DISPLAY: REMOVAL (2008 LX570) .

OK:

Same problem does not occur.

Result

Result

Proceed to

OK

A

NG (w/ Navigation System)

B

NG (w/o Navigation System)

C
A
