Title: THEFT DETERRENT / KEYLESS ENTRY: SMART ACCESS SYSTEM WITH PUSH-BUTTON START (for Entry Function): DESCRIPTION (2008 LX570)

Front Passenger Side Door Entry Unlock Function does not Operate

DESCRIPTION

If the front passenger side door entry unlock function does not operate but the entry lock function operates, the communication line between the vehicle and electrical key transmitter is normal. The part at fault may be a touch sensor circuit (certification ECU [smart key ECU assembly] → front passenger side door outside handle → front passenger side door electrical key oscillator).

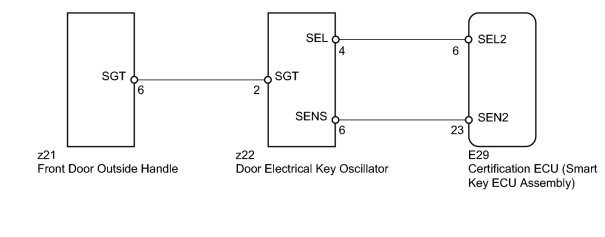

WIRING DIAGRAM



INSPECTION PROCEDURE

PROCEDURE

1.

CHECK POWER DOOR LOCK OPERATION

(a) When the master switch assembly door control switch is operated, check that the locked doors unlock.

OK:

Door locks operate normally.

OK

2.

READ VALUE USING TECHSTREAM (TOUCH SENSOR)

(a) Using the Techstream, read the Data List.

Smart Access

Tester Display

Measurement Item/Range

Normal Condition

Diagnostic Note

P-Door Touch Sensor

Front passenger side door touch sensor / ON or OFF

ON: Touch sensor touched

OFF: Touch sensor not touched

-

OK:

"ON" (sensor is touched) and "OFF" (sensor is not touched) appears on the screen.

OK

3.

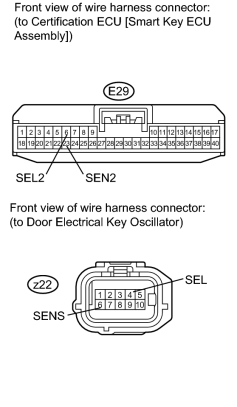

CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU [SMART KEY ECU ASSEMBLY] - DOOR ELECTRICAL KEY OSCILLATOR)


(a) Disconnect the E29 ECU connector.

(b) Disconnect the z22 oscillator connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

E29-6 (SEL2) - z22-4 (SEL)

Always

Below 1 Ω

E29-23 (SEN2) - z22-6 (SENS)

Always

Below 1 Ω

E29-6 (SEL2) - Body ground

Always

10 kΩ or higher

E29-23 (SEN2) - Body ground

Always

10 kΩ or higher

OK

4.

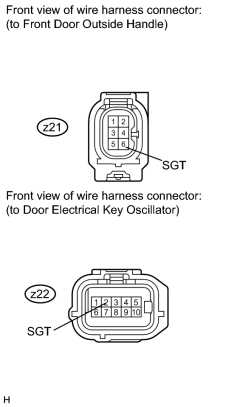

CHECK HARNESS AND CONNECTOR (DOOR ELECTRICAL KEY OSCILLATOR - FRONT DOOR OUTSIDE HANDLE)


(a) Disconnect the z21 handle connector.

(b) Disconnect the z22 oscillator connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

z21-6 (SGT) - z22-2 (SGT)

Always

Below 1 Ω

z21-6 (SGT) - Body ground

Always

10 kΩ or higher

OK

5.

REPLACE DOOR ELECTRICAL KEY OSCILLATOR

(a) Replace the door electrical key oscillator DOOR / HATCH: FRONT DOOR: DISASSEMBLY (2008 LX570)+ .

NEXT

6.

CHECK DOOR ELECTRICAL KEY OSCILLATOR OPERATION

(a) Check that the entry function operates normally.

OK:

Operates normally.

OK

7.

REPLACE FRONT DOOR OUTSIDE HANDLE

(a) Replace the front door outside handle DOOR / HATCH: FRONT DOOR: DISASSEMBLY (2008 LX570)+ .

NEXT

8.

CHECK FRONT DOOR OUTSIDE HANDLE OPERATION

(a) Check that the entry function operates normally.

OK:

Operates normally.

OK
