Title: SEAT BELT: REAR CENTER SEAT OUTER BELT ASSEMBLY (for Rear No. 1 Seat): REMOVAL (2008 LX570)

REMOVAL

1. REMOVE REAR NO. 1 SEAT ASSEMBLY LH

(a) Remove the rear No. 1 seat assembly SEAT: REAR NO. 1 SEAT ASSEMBLY (for LH Side): REMOVAL (2008 LX570) .

2. REMOVE SEAT ADJUSTER BOLT COVER SEAT: REAR NO. 1 SEAT ASSEMBLY (for LH Side): DISASSEMBLY (2008 LX570)+

3. REMOVE RECLINING ADJUSTER RELEASE HANDLE LH SEAT: REAR NO. 1 SEAT ASSEMBLY (for LH Side): DISASSEMBLY (2008 LX570)+

4. REMOVE REAR NO. 1 SEAT RECLINING COVER LH SEAT: REAR NO. 1 SEAT ASSEMBLY (for LH Side): DISASSEMBLY (2008 LX570)+

5. REMOVE REAR NO. 1 SEAT RECLINING COVER RH SEAT: REAR NO. 1 SEAT ASSEMBLY (for LH Side): DISASSEMBLY (2008 LX570)+

6. REMOVE UPPER SEAT TRACK RAIL COVER LH SEAT: REAR NO. 1 SEAT ASSEMBLY (for LH Side): DISASSEMBLY (2008 LX570)+

7. REMOVE UPPER SEAT TRACK RAIL COVER RH SEAT: REAR NO. 1 SEAT ASSEMBLY (for LH Side): DISASSEMBLY (2008 LX570)+

8. REMOVE REAR NO. 2 SEAT LEG SIDE COVER SEAT: REAR NO. 1 SEAT ASSEMBLY (for LH Side): DISASSEMBLY (2008 LX570)+

9. REMOVE REAR NO. 2 SEAT PROTECTOR SEAT: REAR NO. 1 SEAT ASSEMBLY (for LH Side): DISASSEMBLY (2008 LX570)+

10. REMOVE REAR NO. 1 SEAT HINGE SUB-ASSEMBLY LH SEAT: REAR NO. 1 SEAT ASSEMBLY (for LH Side): DISASSEMBLY (2008 LX570)+

11. REMOVE REAR NO. 1 SEAT HINGE SUB-ASSEMBLY RH SEAT: REAR NO. 1 SEAT ASSEMBLY (for LH Side): DISASSEMBLY (2008 LX570)+

12. REMOVE SEAT BELT ANCHOR COVER CAP SEAT: REAR NO. 1 SEAT ASSEMBLY (for LH Side): DISASSEMBLY (2008 LX570)+

13. REMOVE REAR SEATBACK STAY COVER LH SEAT: REAR NO. 1 SEAT ASSEMBLY (for LH Side): DISASSEMBLY (2008 LX570)+

14. REMOVE REAR UNDER SIDE COVER LH SEAT: REAR NO. 1 SEAT ASSEMBLY (for LH Side): DISASSEMBLY (2008 LX570)+

15. REMOVE REAR SEAT CUSHION COVER RH SEAT: REAR NO. 1 SEAT ASSEMBLY (for LH Side): DISASSEMBLY (2008 LX570)+

16. REMOVE REAR SEAT UNDER TRAY COVER LH SEAT: REAR NO. 1 SEAT ASSEMBLY (for LH Side): DISASSEMBLY (2008 LX570)+

17. REMOVE REAR NO. 1 SEAT INNER BELT ASSEMBLY LH SEAT BELT: REAR NO. 1 SEAT INNER BELT ASSEMBLY (for LH Side): REMOVAL (2008 LX570)+

18. REMOVE SEAT CUSHION COVER WITH PAD SEAT: REAR NO. 1 SEAT ASSEMBLY (for LH Side): DISASSEMBLY (2008 LX570)+

19. REMOVE REAR SEATBACK COVER SEAT: REAR NO. 1 SEAT ASSEMBLY (for LH Side): DISASSEMBLY (2008 LX570)+

20. REMOVE REAR SEATBACK BOARD SUB-ASSEMBLY LH SEAT: REAR NO. 1 SEAT ASSEMBLY (for LH Side): DISASSEMBLY (2008 LX570)+

21. REMOVE REAR SEAT HEADREST ASSEMBLY

22. REMOVE REAR NO. 1 SEAT HEADREST SUPPORT ASSEMBLY SEAT: REAR NO. 1 SEAT ASSEMBLY (for LH Side): DISASSEMBLY (2008 LX570)+

23. REMOVE SHOULDER BELT ANCHOR COVER SEAT: REAR NO. 1 SEAT ASSEMBLY (for LH Side): DISASSEMBLY (2008 LX570)+

24. REMOVE REAR SEAT BELT HOLE COVER LH SEAT: REAR NO. 1 SEAT ASSEMBLY (for LH Side): DISASSEMBLY (2008 LX570)+

25. REMOVE SEATBACK COVER WITH PAD SEAT: REAR NO. 1 SEAT ASSEMBLY (for LH Side): DISASSEMBLY (2008 LX570)+

26. REMOVE REAR SEATBACK HINGE COVER LH SEAT: REAR NO. 1 SEAT ASSEMBLY (for LH Side): DISASSEMBLY (2008 LX570)+

27. REMOVE REAR LOWER SEATBACK COVER SUB-ASSEMBLY LH SEAT: REAR NO. 1 SEAT ASSEMBLY (for LH Side): DISASSEMBLY (2008 LX570)+

28. REMOVE REAR SEAT SHOULDER BELT HOLE COVER



(a) Using a screwdriver, detach the 3 claws and remove the shoulder belt hole cover.

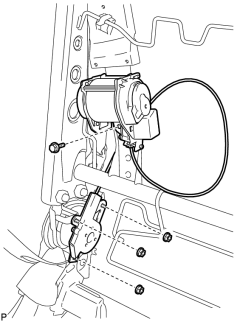

29. REMOVE NO. 1 SEAT 3 POINT TYPE BELT ASSEMBLY LH



(a) Remove the 3 nuts and belt sensor.

(b) Remove the nut and outer belt.
