Title: SEAT BELT: REAR CENTER SEAT OUTER BELT ASSEMBLY (for Rear No. 1 Seat): INSTALLATION (2008 LX570)

INSTALLATION

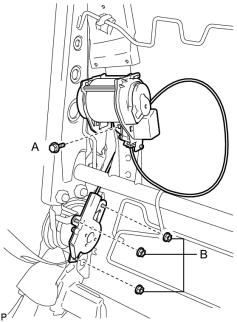

1. INSTALL NO. 1 SEAT 3 POINT TYPE BELT ASSEMBLY LH



(a) Install the belt with the nut labeled A.

Torque: 42 N·m (428 kgf·cm, 31 ft·lbf)

(b) Install the belt sensor with the 3 nuts labeled B.

2. INSTALL REAR SEAT SHOULDER BELT HOLE COVER



(a) Install the seat belt as shown in the illustration.

(b) Attach the 3 claws to install the shoulder belt hole cover.

3. INSTALL REAR LOWER SEATBACK COVER SUB-ASSEMBLY LH SEAT: REAR NO. 1 SEAT ASSEMBLY (for LH Side): REASSEMBLY (2008 LX570)+

4. INSTALL REAR SEATBACK HINGE COVER LH SEAT: REAR NO. 1 SEAT ASSEMBLY (for LH Side): REASSEMBLY (2008 LX570)+

5. INSTALL SEATBACK COVER WITH PAD SEAT: REAR NO. 1 SEAT ASSEMBLY (for LH Side): REASSEMBLY (2008 LX570)+

6. INSTALL REAR SEAT BELT HOLE COVER LH SEAT: REAR NO. 1 SEAT ASSEMBLY (for LH Side): REASSEMBLY (2008 LX570)+

7. INSTALL SHOULDER BELT ANCHOR COVER SEAT: REAR NO. 1 SEAT ASSEMBLY (for LH Side): REASSEMBLY (2008 LX570)+

8. INSTALL REAR NO. 1 SEAT HEADREST SUPPORT ASSEMBLY SEAT: REAR NO. 1 SEAT ASSEMBLY (for LH Side): REASSEMBLY (2008 LX570)+

9. INSTALL REAR SEAT HEADREST ASSEMBLY

10. INSTALL REAR SEATBACK BOARD SUB-ASSEMBLY LH SEAT: REAR NO. 1 SEAT ASSEMBLY (for LH Side): REASSEMBLY (2008 LX570)+

11. INSTALL REAR SEATBACK COVER SEAT: REAR NO. 1 SEAT ASSEMBLY (for LH Side): REASSEMBLY (2008 LX570)+

12. INSTALL SEAT CUSHION COVER WITH PAD SEAT: REAR NO. 1 SEAT ASSEMBLY (for LH Side): REASSEMBLY (2008 LX570)+

13. INSTALL REAR NO. 1 SEAT INNER BELT ASSEMBLY LH SEAT BELT: REAR NO. 1 SEAT INNER BELT ASSEMBLY (for LH Side): INSTALLATION (2008 LX570)+

14. INSTALL REAR SEAT UNDER TRAY COVER LH SEAT: REAR NO. 1 SEAT ASSEMBLY (for LH Side): REASSEMBLY (2008 LX570)+

15. INSTALL REAR SEAT CUSHION COVER RH SEAT: REAR NO. 1 SEAT ASSEMBLY (for LH Side): REASSEMBLY (2008 LX570)+

16. INSTALL REAR UNDER SIDE COVER LH SEAT: REAR NO. 1 SEAT ASSEMBLY (for LH Side): REASSEMBLY (2008 LX570)+

17. INSTALL REAR SEATBACK STAY COVER LH SEAT: REAR NO. 1 SEAT ASSEMBLY (for LH Side): REASSEMBLY (2008 LX570)+

18. INSTALL SEAT BELT ANCHOR COVER CAP SEAT: REAR NO. 1 SEAT ASSEMBLY (for LH Side): REASSEMBLY (2008 LX570)+

19. INSTALL REAR NO. 1 SEAT HINGE SUB-ASSEMBLY RH SEAT: REAR NO. 1 SEAT ASSEMBLY (for LH Side): REASSEMBLY (2008 LX570)+

20. INSTALL REAR NO. 1 SEAT HINGE SUB-ASSEMBLY LH SEAT: REAR NO. 1 SEAT ASSEMBLY (for LH Side): REASSEMBLY (2008 LX570)+

21. INSTALL REAR NO. 2 SEAT PROTECTOR SEAT: REAR NO. 1 SEAT ASSEMBLY (for LH Side): REASSEMBLY (2008 LX570)+

22. INSTALL REAR NO. 2 SEAT LEG SIDE COVER SEAT: REAR NO. 1 SEAT ASSEMBLY (for LH Side): REASSEMBLY (2008 LX570)+

23. INSTALL UPPER SEAT TRACK RAIL COVER RH SEAT: REAR NO. 1 SEAT ASSEMBLY (for LH Side): REASSEMBLY (2008 LX570)+

24. INSTALL UPPER SEAT TRACK RAIL COVER LH SEAT: REAR NO. 1 SEAT ASSEMBLY (for LH Side): REASSEMBLY (2008 LX570)+

25. INSTALL REAR NO. 1 SEAT RECLINING COVER RH SEAT: REAR NO. 1 SEAT ASSEMBLY (for LH Side): REASSEMBLY (2008 LX570)+

26. INSTALL REAR NO. 1 SEAT RECLINING COVER LH SEAT: REAR NO. 1 SEAT ASSEMBLY (for LH Side): REASSEMBLY (2008 LX570)+

27. INSTALL RECLINING ADJUSTER RELEASE HANDLE LH SEAT: REAR NO. 1 SEAT ASSEMBLY (for LH Side): REASSEMBLY (2008 LX570)+

28. INSTALL SEAT ADJUSTER BOLT COVER SEAT: REAR NO. 1 SEAT ASSEMBLY (for LH Side): REASSEMBLY (2008 LX570)+

29. INSTALL REAR NO. 1 SEAT ASSEMBLY LH

(a) Install the rear No. 1 seat assembly SEAT: REAR NO. 1 SEAT ASSEMBLY (for LH Side): INSTALLATION (2008 LX570) .
