1. REMOVE NO. 4 ENGINE ROOM WIRE

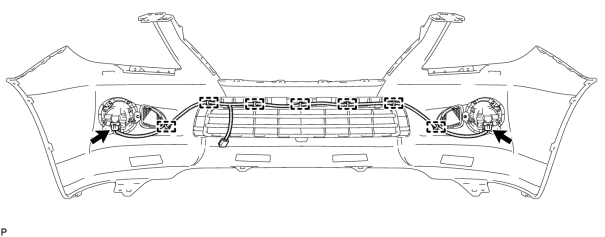

(a) w/o Intuitive Parking Assist System:

Remove the No. 4 engine room wire.

(1) Disconnect the 2 connectors.

(2) Detach the 7 clamps and remove the engine room wire.

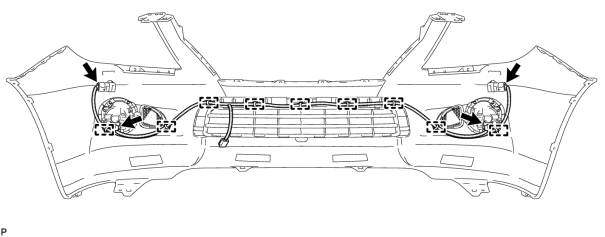

(b) w/ Intuitive Parking Assist System:

Remove the No. 4 engine room wire.

(1) Disconnect the 4 connectors.

(2) Detach the 9 clamps and remove the engine room wire.

4. REMOVE FOG LIGHT ASSEMBLY LH

(a) Remove the 4 screws and fog light.

5. REMOVE FOG LIGHT ASSEMBLY RH

HINT:

Use the same procedures described for the LH side.

6. REMOVE FOG LIGHT MOUNTING BRACKET LH

(a) Remove the 4 screws and bracket.

7. REMOVE FOG LIGHT MOUNTING BRACKET RH

HINT:

Use the same procedures described for the LH side.

8. REMOVE FRONT BUMPER GARNISH LH

(a) Detach the 3 claws and remove the garnish.

9. REMOVE FRONT BUMPER GARNISH RH

HINT:

Use the same procedures described for the LH side.

10. REMOVE FRONT BUMPER HOLE COVER LH

(a) Detach the 3 claws and remove the hole cover.

11. REMOVE FRONT BUMPER HOLE COVER RH

HINT:

Use the same procedures described for the LH side.

12. REMOVE LOWER RADIATOR GRILLE

(a) Detach the 16 claws and remove the lower radiator grille.

14. REMOVE TYPE 1 HEADLIGHT WASHER NOZZLE SUB-ASSEMBLY RH (w/ Headlight Cleaner System)

HINT:

Use the same procedures described for the LH side.

16. REMOVE HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY RH (w/ Headlight Cleaner System)

HINT:

Use the same procedures described for the LH side.

17. REMOVE FRONT BUMPER PROTECTOR

(a) Remove the 2 bumper protectors.

18. REMOVE FRONT BUMPER EXTENSION MOUNTING BRACKET

(a) Remove the 2 screws and bracket.
