Title: EXTERIOR PANELS / TRIM: REAR BUMPER: REASSEMBLY (2008 LX570)

REASSEMBLY

1. INSTALL REAR NO. 2 STEP COVER



(a) Attach the 4 claws to install the step cover.

(b) Install the 2 screws and 2 clips.

2. INSTALL REAR LOWER BUMPER COVER

(a) Install the rear lower bumper cover with the clip.

3. INSTALL REAR FOG LIGHT ASSEMBLY LH



(a) Attach the claw to install the fog light.

(b) Install the 2 nuts.

4. INSTALL REAR FOG LIGHT ASSEMBLY RH

HINT:

Use the same procedures described for the LH side.

5. INSTALL REAR BUMPER ENERGY ABSORBER



(a) Attach the 8 claws to install the energy absorber.

6. INSTALL NO. 2 ULTRASONIC SENSOR RETAINER (w/ Intuitive Parking Assist System) PARK ASSIST / MONITORING: ULTRASONIC SENSOR (for Rear): INSTALLATION (2008 LX570)+

7. INSTALL NO. 3 ULTRASONIC SENSOR RETAINER (w/ Intuitive Parking Assist System) PARK ASSIST / MONITORING: ULTRASONIC SENSOR (for Rear): INSTALLATION (2008 LX570)+

8. INSTALL NO. 2 ULTRASONIC SENSOR (w/ Intuitive Parking Assist System) PARK ASSIST / MONITORING: ULTRASONIC SENSOR (for Rear): INSTALLATION (2008 LX570)+

9. INSTALL NO. 3 ULTRASONIC SENSOR (w/ Intuitive Parking Assist System) PARK ASSIST / MONITORING: ULTRASONIC SENSOR (for Rear): INSTALLATION (2008 LX570)+

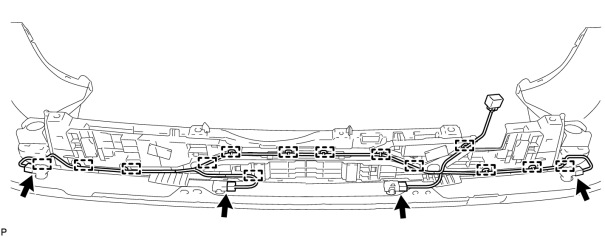

10. INSTALL NO. 2 FRAME WIRE (w/ Intuitive Parking Assist System)

(a) Attach the 14 clamps to install the frame wire.

(b) Connect the 4 connectors.
