1. REMOVE NO. 2 AIR OUTLET GRILLE ASSEMBLY

HINT:

Use the same procedures to remove the air outlet grille on the other side.

(a) Detach 6 claws and remove the air outlet grille.

2. REMOVE NO. 1 AIR OUTLET GRILLE ASSEMBLY

HINT:

Use the same procedures described for the No. 2 air outlet grille.

3. REMOVE NO. 1 ROOF SILENCER PAD

(a) Remove the roof silencer pad.

4. REMOVE NO. 4 ROOF SILENCER PAD

(a) Remove the roof silencer pad.

5. REMOVE NO. 1 ROOF WIRE

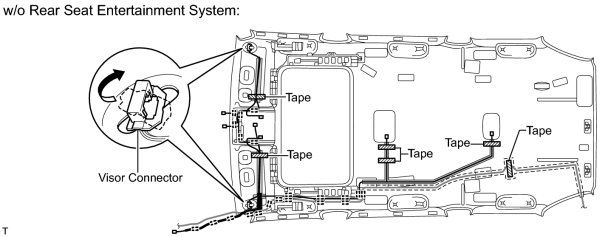

(a) w/o Rear Seat Entertainment System:

Remove the No. 1 roof wire.

(1) Turn the visor connectors approximately 90° clockwise and remove them from the roof headlining.

(2) Remove the 6 pieces of tape from the roof headlining.

(3) Detach each clamp, and remove the roof wire and washer hose.

(4) Remove the double-sided tape remaining on the headlining.

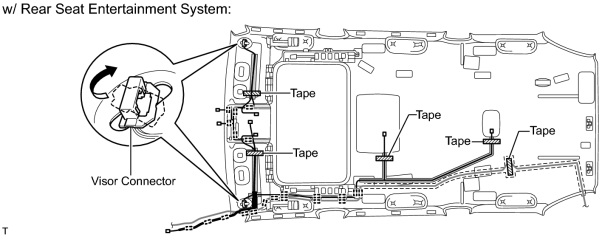

(b) w/ Rear Seat Entertainment System:

Remove the No. 1 roof wire.

(1) Turn the visor connectors approximately 90° clockwise and remove them from the roof headlining.

(2) Remove the 5 pieces of tape from the roof headlining.

(3) Detach each clamp, and remove the roof wire and washer hose.

(4) Remove the double-sided tape remaining on the headlining.
