REMOVAL
1. REMOVE ENGINE ROOM SIDE COVER LH
2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
NOTICE:
-
w/ Navigation System:
After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.
-
When disconnecting the cable, some systems need to be initialized after the cable is reconnected
.
3. REMOVE ROOF HEADLINING ASSEMBLY
(a) Remove the roof headlining assembly
.
4. REMOVE ANTENNA CORD SUB-ASSEMBLY

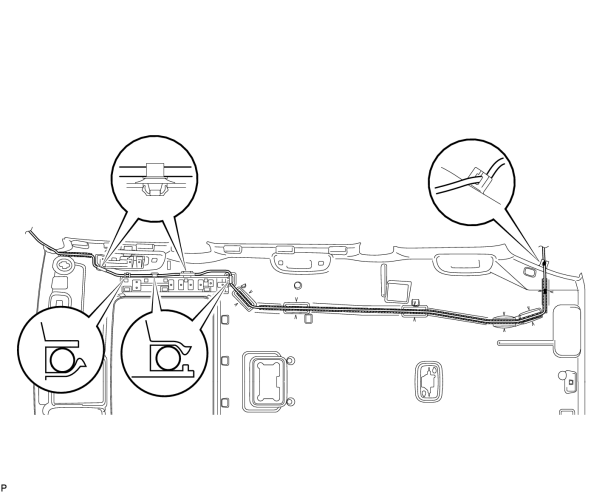

(a) Detach the 2 clamps and remove the antenna from the 3 ribs and notch on the rear of the roof headlining.
(b) Remove the antenna cord from the roof headlining.
(c) Remove the double-sided tape from the roof headlining.
5. REMOVE INSTRUMENT PANEL SAFETY PAD ASSEMBLY
(a) Remove the instrument panel safety pad
.
6. REMOVE ANTENNA CORD SUB-ASSEMBLY
(a) Detach the 7 clamps and remove the antenna cord.
|
|
