| Last Modified: 11-27-2007 | 1.6 A | |
| Service Category: Vehicle Interior | Section: Seat | |
| Model Year: 2008 | Model: LX570 | Doc ID: RM000003914002X |
| Title: SEAT: REAR NO. 1 SEAT ASSEMBLY (for RH Side): REMOVAL (2008 LX570) | ||
REMOVAL
1. REMOVE ENGINE ROOM SIDE COVER LH
2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
NOTICE:
-
w/ Navigation System:
After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.
-
When disconnecting the cable, some systems need to be initialized after the cable is reconnected
.
3. REMOVE REAR NO. 2 SEAT CUSHION HINGE COVER
(a) Using a screwdriver, detach the 6 claws and remove the cover.
HINT:
Tape the screwdriver tip before use.
4. REMOVE REAR NO. 4 SEAT CUSHION HINGE COVER
(a) Using a screwdriver, detach the 7 claws and remove the cover.
HINT:
Tape the screwdriver tip before use.
5. REMOVE REAR NO. 1 SEAT CUSHION HINGE COVER
|
(a) Operate the reclining adjuster release handle to move the seat into the position shown in the illustration. |
|
(b) Using a screwdriver, detach the 2 claws and 2 clips, and remove the cover. HINT:
Tape the screwdriver tip before use. |
6. REMOVE REAR NO. 3 SEAT CUSHION HINGE COVER
|
(a) Using a screwdriver, detach the 2 claws and 2 clips, and remove the cover. HINT:
Tape the screwdriver tip before use. |
7. REMOVE REAR NO. 1 SEAT ASSEMBLY RH
|
(a) Disconnect the connector. |
(b) w/ Seat Heater System:
Disconnect the connector.
|
(c) Remove the 4 bolts and seat assembly. NOTICE:
Be careful not to damage the vehicle body. |
8. REMOVE REAR NO. 1 SEAT ASSEMBLY LH
(a) Remove the rear No. 1 seat assembly LH
.
9. REMOVE REAR NO. 1 SEAT PROTECTOR
(a) Detach the 10 claws and remove the 2 seat protectors.
10. REMOVE REAR NO. 2 SEAT PROTECTOR
(a) Detach the 10 claws and remove the 2 seat protectors.
11. REMOVE REAR STEP COVER
12. REMOVE REAR DOOR SCUFF PLATE LH
13. REMOVE REAR DOOR SCUFF PLATE RH
14. REMOVE REAR NO. 2 SEAT ASSEMBLY
(a) Remove the rear No. 2 seat assembly
.
15. REMOVE REAR FLOOR MAT REAR SUPPORT PLATE
16. REMOVE LUGGAGE COMPARTMENT NO. 1 TRIM HOOK
17. REMOVE REAR SEAT COVER CAP
18. REMOVE FRONT QUARTER TRIM PANEL ASSEMBLY LH
19. REMOVE FRONT QUARTER TRIM PANEL ASSEMBLY RH
20. REMOVE AIR DUCT PLUG
21. REMOVE REAR AIR DUCT GUIDE
22. REMOVE FRONT FLOOR CARPET ASSEMBLY
23. REMOVE REAR NO. 6 AIR DUCT

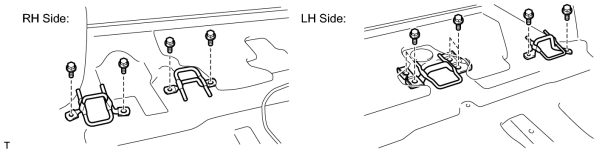

24. REMOVE REAR SEAT CUSHION LOCK STRIKER SUB-ASSEMBLY
(a) Remove the 10 bolts and 4 lock strikers.
|
|
