REASSEMBLY
NOTICE:
Do not disconnect the hoses indicated in the illustration.
1. INSTALL NO. 1 FUEL SUCTION SUPPORT
|
(a) Attach the 2 claws to the claw holes to install the fuel suction support. |
2. INSTALL FUEL MAIN VALVE ASSEMBLY
|
(a) Apply a light coat of gasoline to 2 new O-rings, and install them onto the fuel main valve. |
|
(b) Install the fuel main valve to the fuel filter case. NOTICE:
Make sure the O-rings are not cut or pinched during the installation. |
3. INSTALL FUEL PUMP
|
(a) Connect the fuel pump wire harness connector to the fuel pump. |
|
(b) Apply a light coat of gasoline to a new O-ring. Then install the O-ring and spacer to the fuel pump. |
|
(c) Attach the 5 claws to the claw holes and install the fuel pump to the fuel filter case. |
4. INSTALL NO. 1 FUEL SUB-TANK
NOTICE:

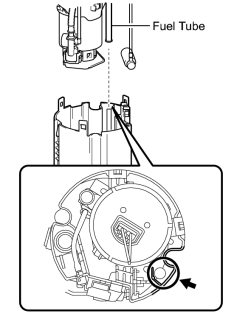

Make sure that the fuel tube passes into the section marked by the circle.
|
(a) Attach the 3 claws to the claw holes to install the fuel sub-tank. |
|
(b) Attach the 3 claws to the claw holes. |
|
(c) Install the tube part to the sub-tank. (1) Attach the claw on the end of the tube to the claw hole. Install the tube to the 2 clamps on the sub-tank. |
(d) Connect the jet pump to the sub-tank.
|
(e) Connect the fuel pump connector. |
5. INSTALL FUEL SENDER GAUGE ASSEMBLY
|
|
