INSTALLATION
HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.
- When installing the black out tape and window frame moulding, heat the vehicle body, black out tape and window frame moulding using a heat light.
Standard:
|
Item |
Temperature |
|---|---|
|
Vehicle Body |
40 to 60°C (104 to 140°F) |
|
Black Out Tape |
20 to 30°C (68 to 86°F) |
|
Window Frame Moulding |
20 to 30°C (68 to 86°F) |
NOTICE:
Do not heat the vehicle body, black out tape and window frame moulding excessively.
1. REPAIR INSTRUCTION
(a) Clean the vehicle body surface.
(1) Using a heat light, heat the vehicle body surface.
(2) Wipe off any tape adhesive residue with cleaner.
(b) Installation temperature
(1) When the ambient temperature is below 15°C (59°F), perform the installation procedure after warming up the vehicle body surface (installation surface of the door frame) and tape to between 20 and 30°C (68 and 86°F) using a heat light. When the ambient temperature is above 35°C (95°F), cool down the vehicle body surface (installation surface of the door frame) and tape to between 20 and 30°C (68 and 86°F) prior to installation.
HINT:
- The most appropriate temperature for installing the tape is 25°C (77°F).
- When the temperature is low, the tape becomes stiff and falls off easily. When the temperature is high, the tape loses elasticity.
(c) Before installation
(1) Make sure any dirt on and around the vehicle body surface where the tape will be installed (installation surface of the door frame) is removed, and that the surface is smooth. If the surface is rough or dirt remains when pressing the tape onto the surface, air will be trapped under the tape and result in a poor appearance.
HINT:
Spray water on the shop floor to settle any dust.
(d) Key points for handling the tape
(1) The tape bends and rolls up easily. Store the tape between flat pieces of cardboard or other similar objects and keep it dry and level.
NOTICE:
Do not bend the tape or leave it in high temperature places.
(e) Key points for the installation of the tape (how to use a squeegee and the installation procedure for flat surfaces)
NOTICE:
- Position the tape with a high level of accuracy to achieve a neat finish and to avoid peeling.
- The tape cannot be reused because it deforms and will not fit after removal.

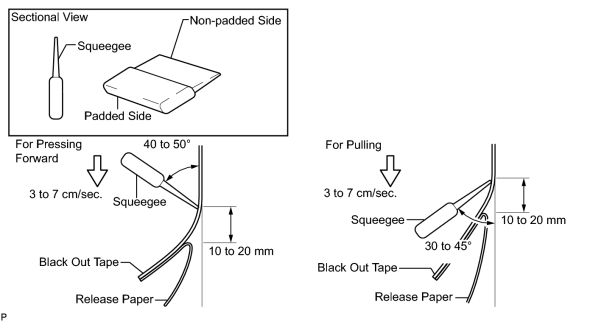

(1) To avoid air bubbles, slightly raise the part of the tape that is going to be applied so that its adhesive surface does not touch the vehicle body while applying the tape. Tilt the squeegee at 40 to 50° (for pressing forward) or 30 to 45° (for pulling) to the vehicle body surface and slowly press the tape onto the vehicle body surface with a force of 20 to 30 N (2 to 3 kgf) at a constant speed of 30 to 70 mm (1.18 to 2.76 in.) per second.
NOTICE:
Be sure to observe the specified pressing speed, force, and angle of the squeegee to avoid wrinkles or air bubbles.
HINT:
- Either angle of the squeegee (for pressing forward or for pulling) is acceptable.
- Be sure to apply the tape while removing the release paper 10 to 20 mm (0.393 to 0.787 in.) from the edge of the squeegee.
(f) Key points for the installation of the tape (how to use a squeegee and the installation procedure for hemmed surfaces)
|
(1) If it is difficult to press the tape, press it in several steps as shown in the illustration. Use your fingers or the padded surface of a squeegee to slowly apply the tape to the hem of the vehicle, especially for a small hem. HINT:
When applying tape to the backside of a hem, remove the release paper and use your fingers or the padded surface of a squeegee. |
(g) Key points for the installation of the tape (how to use a squeegee and the installation procedure for corners)
(1) Remove the release paper and apply the tape carefully with your fingers.
(2) Before applying the tape to each corner, heat the tape using a heat light and gradually apply it to avoid wrinkles on the tape and achieve a neat finish.
(h) Check after installation
(1) After completing the application, check if the tape is applied neatly. If the tape is not applied neatly, apply new tape.
NOTICE:
Do not reuse the tape.
2. INSTALL NO. 4 BLACK OUT TAPE LH
(a) Refer to the illustration to position a new No. 4 black out tape.
(b) Remove the release paper and apply the tape.
3. INSTALL NO. 3 BLACK OUT TAPE LH
(a) Refer to the illustration to position a new No. 3 black out tape.
(b) Remove the release paper and apply the tape.
4. INSTALL NO. 1 BLACK OUT TAPE LH
(a) Refer to the illustration to position a new No. 1 black out tape.
Standard:
|
Area |
Dimension |
|---|---|
|
A |
2 to 4 mm (0.078 to 0.158 in.) |
|
B |
4 to 6 mm (0.158 to 0.236 in.) |
(b) Remove the release paper and apply the tape.
5. INSTALL FRONT DOOR WEATHERSTRIP LH
(a) Attach the 5 clips and install the upper part of the front door weatherstrip.
(b) Install the clip.
6. INSTALL LOWER DOOR FRAME GARNISH LH
7. INSTALL FRONT DOOR REAR WINDOW FRAME MOULDING LH
8. INSTALL FRONT DOOR BELT MOULDING ASSEMBLY LH
9. INSTALL FRONT DOOR GLASS RUN LH
10. INSTALL FRONT DOOR GLASS SUB-ASSEMBLY LH
11. INSTALL FRONT INNER DOOR GLASS WEATHERSTRIP LH
12. INSTALL FRONT DOOR SERVICE HOLE COVER LH
13. INSTALL OUTER REAR VIEW MIRROR ASSEMBLY LH
14. INSTALL DOOR TRIM COVER LH
15. INSTALL FRONT DOOR PANEL CUSHION
16. INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH
17. INSTALL FRONT UPPER ARMREST BASE PANEL LH
18. INSTALL FRONT DOOR INSIDE HANDLE BEZEL PLUG LH
19. INSTALL FRONT LOWER DOOR FRAME BRACKET GARNISH LH
20. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected
.
21. INSTALL ENGINE ROOM SIDE COVER LH
|
|
