SUSPENSION CONTROL: ACTIVE HEIGHT CONTROL PUMP AND MOTOR: INSTALLATION (2008 LX570)

Home › Suspension › Suspension Control System › SUSPENSION CONTROL: ACTIVE HEIGHT CONTROL PUMP AND MOTOR

Last Modified: 11-27-2007		1.6 A
Service Category: Suspension	Section: Suspension Control System
Model Year: 2008	Model: LX570	Doc ID: RM0000039ZB001X
Title: SUSPENSION CONTROL: ACTIVE HEIGHT CONTROL PUMP AND MOTOR: INSTALLATION (2008 LX570)

INSTALLATION

1. INSTALL HEIGHT CONTROL PUMP AND MOTOR ASSEMBLY

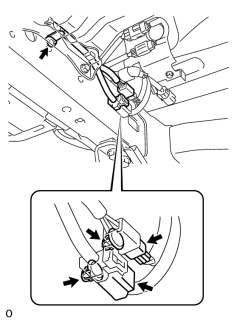

(a) Install the pump and motor with the 3 bolts.

Torque: 31 N·m (316 kgf·cm, 23 ft·lbf)

(b) Connect the 2 connectors and 3 clamps.

2. INSTALL HEIGHT CONTROL TUBE CLAMP

(a) Install the tube clamp with the 2 bolts.

Torque: 20 N·m (204 kgf·cm, 15 ft·lbf)

(b) Connect the reservoir hose to the tube clamp.

3. CONNECT REAR NO. 6 HEIGHT CONTROL TUBE

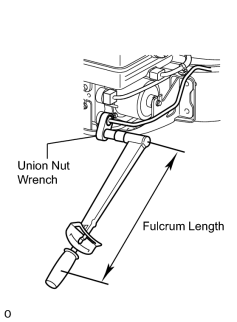

(a) Using a union nut wrench, connect the control tube to the pump and motor.

Torque: 15 N·m (155 kgf·cm, 11 ft·lbf)

Torque: 14 N·m (143 kgf·cm, 10 ft·lbf)

HINT:

Use a torque wrench with a fulcrum length of 300 mm (11.8 in.).
The torque value for use with a union nut wrench is effective when the union nut wrench is parallel to the torque wrench.

7. INSTALL FUEL TANK FILLER PIPE PROTECTOR

(a) Using a T30 "TORX" socket wrench, install the pipe protector with the 3 screws and 2 new grommets.

9. INSTALL REAR BUMPER COVER
