Home › Suspension › Suspension Control System › SUSPENSION CONTROL: ACTIVE HEIGHT CONTROL PUMP AND MOTOR
Last Modified: 11-27-2007 1.6 A
Service Category: Suspension Section: Suspension Control System
Model Year: 2008 Model: LX570 Doc ID: RM0000039ZE001X
Title: SUSPENSION CONTROL: ACTIVE HEIGHT CONTROL PUMP AND MOTOR: REMOVAL (2008 LX570)

REMOVAL

1. DISCHARGE SUSPENSION FLUID PRESSURE

(a) Connect a hose to the bleeder plug for the height control accumulator and loosen the bleeder plug.

(b) Discharge the suspension fluid pressure.

(c) After the fluid pressure has dropped and oil has drained out, tighten the bleeder plug and remove the hose.

Torque: 6.9 N·m (70 kgf·cm, 61 in·lbf)

2. REMOVE REAR QUARTER PANEL MUDGUARD RH EXTERIOR PANELS / TRIM: MUDGUARD: REMOVAL (2008 LX570)+

3. REMOVE REAR BUMPER COVER

(a) Remove the bumper cover EXTERIOR PANELS / TRIM: REAR BUMPER: REMOVAL (2008 LX570) .

4. REMOVE LUGGAGE COMPARTMENT NO. 1 SIDE COVER PROTECTOR EXTERIOR PANELS / TRIM: REAR BUMPER: REMOVAL (2008 LX570)+

5. REMOVE FUEL TANK FILLER PIPE PROTECTOR

(a) Using a T30 "TORX" socket wrench, remove the 3 screws, 2 grommets and pipe protector.

6. DISCONNECT REAR NO. 6 HEIGHT CONTROL TUBE

(a) Using a union nut wrench, disconnect the No. 6 height control tube from the pump and motor.

7. REMOVE HEIGHT CONTROL TUBE CLAMP

(a) Disconnect the tube clamp from the hose, then remove the 2 bolts and tube clamp.

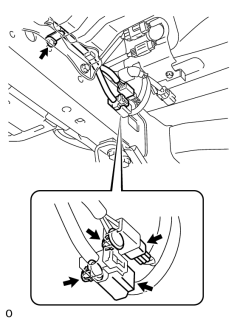

8. REMOVE HEIGHT CONTROL PUMP AND MOTOR ASSEMBLY

(a) Disconnect the 2 connectors and 3 clamps.

(b) Remove the 3 bolts and pump and motor.
