| Last Modified: 11-27-2007 | 1.6 A | |
| Service Category: Suspension | Section: Suspension Control System | |
| Model Year: 2008 | Model: LX570 | Doc ID: RM000003A02003X |
| Title: SUSPENSION CONTROL: DAMPING FORCE CONTROL ACTUATOR (for Rear Side): REMOVAL (2008 LX570) | ||
REMOVAL
HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.
1. REMOVE HEIGHT CONTROL PROTECTOR PIPE
2. REMOVE FRONT FENDER MUDGUARD LH
3. REMOVE SIDE STEP ASSEMBLY
4. REMOVE HEIGHT CONTROL PROTECTOR PIPE BRACKET
5. DISCHARGE SUSPENSION FLUID PRESSURE
6. REMOVE REAR SUSPENSION CONTROL ACCUMULATOR ASSEMBLY LH
|
(a) Remove the control accumulator from the control valve. |
(b) Remove the O-ring from the accumulator.
7. REMOVE REAR NO. 3 SUSPENSION CONTROL ACCUMULATOR LH
|
(a) Remove the No. 3 suspension control accumulator from the control valve. |
(b) Remove the O-ring and back-up ring from the control accumulator.
8. REMOVE REAR SHOCK ABSORBER CONTROL VALVE ASSEMBLY LH
|
(a) Disconnect the control valve connector. |

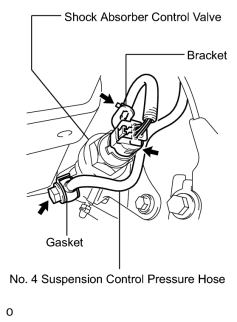

(b) Remove the union bolt and gasket from the No. 4 suspension control pressure hose.
(c) Disconnect the wire harness clamp from the control valve bracket.
|
(d) Using a union nut wrench, disconnect the No. 4 height control tube from the control valve. |
|
(e) Remove the 3 bolts and control valve with the bracket from the vehicle. |
|
(f) Remove the 3 bolts and bracket from the control valve. |
9. REMOVE REAR NO. 2 SUSPENSION CONTROL ACCUMULATOR BRACKET LH
(a) Remove the bolt and bracket from the shock absorber control valve.
|
|
