Title: PARK ASSIST / MONITORING: INTUITIVE PARKING ASSIST SYSTEM: DESCRIPTION (2008 LX570) |
|
DTC
|
C1AEC
|
Front Sensor Communication Malfunction
|
DESCRIPTION
This DTC is stored when there is an open or short circuit in the communication line between the front sensors and the ECU, or when there is a malfunction in a front sensor.
|
DTC Code
|
DTC Detection Condition
|
Trouble Area
|
|
C1AEC
|
An open or short circuit in the communication line between the front sensors and ECU or a malfunction in a front sensor during initialization mode after the engine switch is turned on (IG).
|
-
Front ultrasonic sensor circuit
-
Parking assist ECU
|

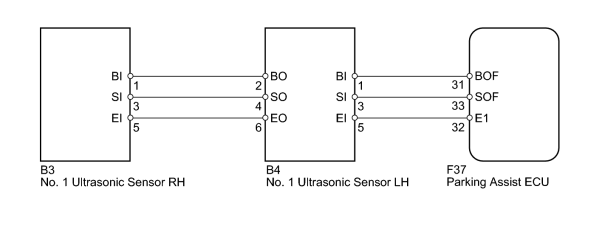

WIRING DIAGRAM
INSPECTION PROCEDURE
PROCEDURE
(a) Clear the DTCs
.
(b) Check for DTCs
.
Result
|
Result
|
Proceed to
|
|
DTC C1AEC is output
|
A
|
|
No DTC is output
|
B
|
| A |
|
|
|
2.
|
CHECK PARKING ASSIST ECU
|
(a) Measure the voltage according to the value(s) in the table below.
Standard Voltage:
|
Tester Connection
|
Condition
|
Specified Condition
|
|
F37-31 (BOF) - Body ground
|
Engine switch on (IG)
|
7.2 to 8.8 V
|
(b) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection
|
Condition
|
Specified Condition
|
|
F37-32 (E1) - Body ground
|
Always
|
Below 1 Ω
|
| OK |
|
|
|
3.
|
CHECK HARNESS AND CONNECTOR (NO. 1 ULTRASONIC SENSOR LH - PARKING ASSIST ECU)
|

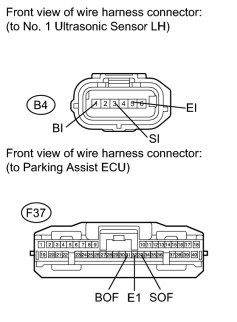

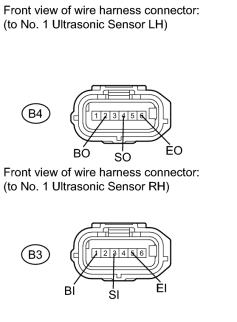

(a) Disconnect the B4 sensor connector.
(b) Disconnect the F37 ECU connector.
(c) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection
|
Condition
|
Specified Condition
|
|
B4-1 (BI) - F37-31 (BOF)
|
Always
|
Below 1 Ω
|
|
B4-3 (SI) - F37-33 (SOF)
|
Always
|
Below 1 Ω
|
|
B4-5 (EI) - F37-32 (E1)
|
Always
|
Below 1 Ω
|
|
B4-1 (BI) - Body ground
|
Always
|
10 kΩ or higher
|
|
B4-3 (SI) - Body ground
|
Always
|
10 kΩ or higher
|
|
B4-5 (EI) - Body ground
|
Always
|
10 kΩ or higher
|
| OK |
|
|
|
4.
|
CHECK HARNESS AND CONNECTOR (NO. 1 ULTRASONIC SENSOR LH - NO. 1 ULTRASONIC SENSOR RH)
|
(a) Disconnect the B4 and B3 sensor connectors.
(b) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection
|
Condition
|
Specified Condition
|
|
B4-2 (BO) - B3-1 (BI)
|
Always
|
Below 1 Ω
|
|
B4-4 (SO) - B3-3 (SI)
|
Always
|
Below 1 Ω
|
|
B4-6 (EO) - B3-5 (EI)
|
Always
|
Below 1 Ω
|
|
B4-2 (BO) - Body ground
|
Always
|
10 kΩ or higher
|
|
B4-4 (SO) - Body ground
|
Always
|
10 kΩ or higher
|
|
B4-6 (EO) - Body ground
|
Always
|
10 kΩ or higher
|
| OK |
|
|
(a) Clear the DTCs
.
(b) Check for DTCs
.
Result
|
Result
|
Proceed to
|
|
DTC C1AEC is output and multi-information display indicates open circuit (front left and front right)
|
A
|
|
No DTC is output
|
B
|
| A |
|
|
|
6.
|
INSPECT NO. 1 ULTRASONIC SENSOR LH
|
|
(a) Disconnect the B4 sensor connector.
|
(b) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection
|
Condition
|
Specified Condition
|
|
B4-1 (BI) - B4-5 (BI)
|
Always
|
10 kΩ or higher
|
|
B4-1 (BI) - B4-2 (BO)
|
Always
|
10 kΩ or higher
|
|
B4-3 (SI) - B4-4 (SO)
|
Always
|
Below 1 Ω
|
|
B4-5 (EI) - B4-6 (EO)
|
Always
|
Below 1 Ω
|
| OK |
|
|
(a) Clear the DTCs
.
(b) Check for DTCs
.
Result
|
Result
|
Proceed to
|
|
DTC C1AEC is output
|
A
|
|
No DTC is output
|
B
|
| A |
|
|
|
8.
|
REPLACE NO. 1 ULTRASONIC SENSOR RH
|
(a) Replace the No. 1 ultrasonic sensor RH with a normally functioning sensor
.
| NEXT |
|
|
(a) Clear the DTCs
.
(b) Check for DTCs
.
Result
|
Result
|
Proceed to
|
|
DTC C1AEC is output
|
A
|
|
No DTC is output
|
B
|
| A |
|
|
|
