| Title: AUDIO / VIDEO: AMPLIFIER ANTENNA: INSTALLATION (2008 LX570) | ||
INSTALLATION
1. INSTALL AMPLIFIER ANTENNA ASSEMBLY

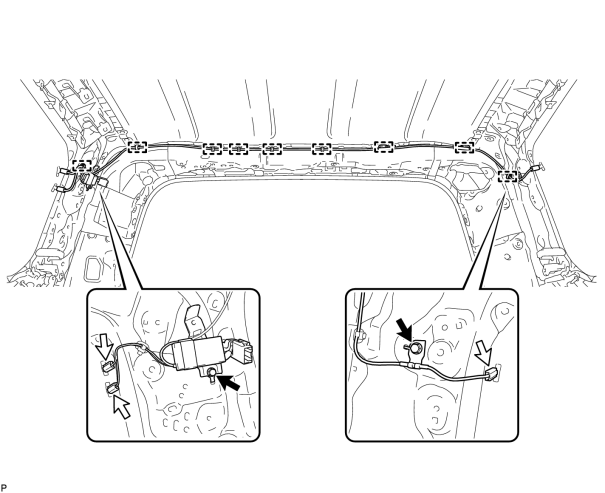

(a) Attach the 9 clamps and install the 2 bolts.
(b) Connect the 3 connectors to install the antenna.

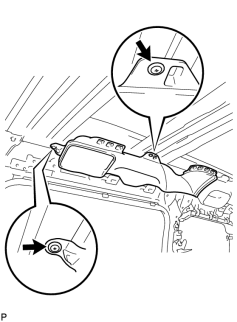

2. INSTALL NO. 1 REAR ROOF AIR DUCT
|
(a) Install the duct with the 3 clips. |

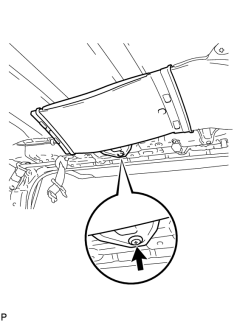

3. INSTALL NO. 3 REAR ROOF AIR DUCT
|
(a) Install the duct with the clip. |

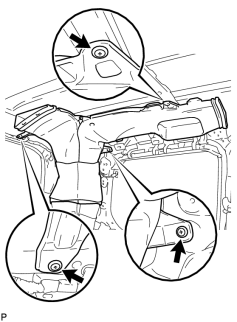

4. INSTALL NO. 4 REAR ROOF AIR DUCT
|
(a) Install the duct with the 2 clips. |

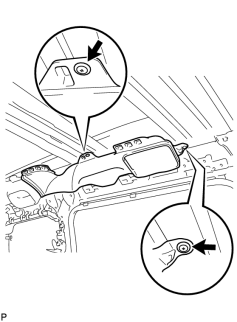

5. INSTALL NO. 5 REAR ROOF AIR DUCT
|
(a) Install the duct with the 2 clips. |

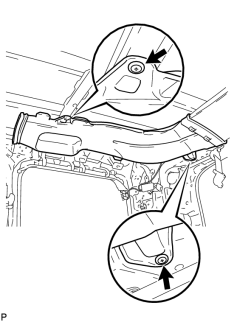

6. INSTALL NO. 2 REAR ROOF AIR DUCT
|
(a) Install the duct with the 2 clips. |
7. INSTALL ROOF HEADLINING ASSEMBLY
(a) Install the roof headlining
.
8. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected
.
9. INSTALL ENGINE ROOM SIDE COVER LH
|
|
