Title: SEAT: REAR SEATBACK HEATER (for LH Side): INSTALLATION (2008 LX570)

INSTALLATION

CAUTION:

Wear protective gloves. Sharp areas on the parts may injure your hands.

1. INSTALL REAR SEATBACK HEATER ASSEMBLY

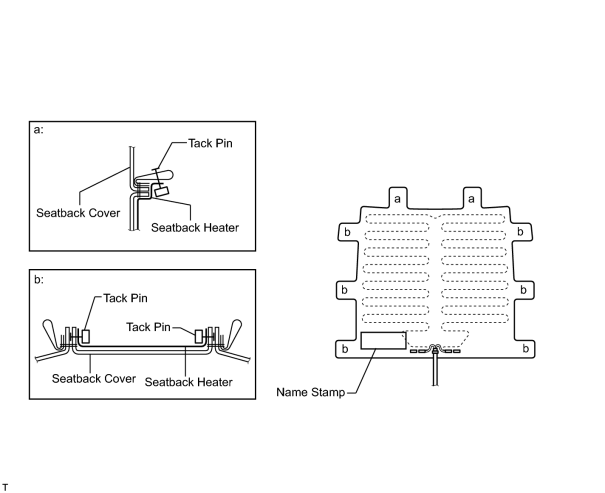

(a) Set the seatback heater with the name stamp side facing the seatback cover.

(b) Install the seatback heater with new tack pins.

2. INSTALL REAR SEPARATE TYPE SEATBACK COVER SEAT: REAR NO. 1 SEAT ASSEMBLY (for LH Side): REASSEMBLY (2008 LX570)+

3. INSTALL SEATBACK COVER WITH PAD SEAT: REAR NO. 1 SEAT ASSEMBLY (for LH Side): REASSEMBLY (2008 LX570)+

4. INSTALL REAR SEAT BELT HOLE COVER LH SEAT: REAR NO. 1 SEAT ASSEMBLY (for LH Side): REASSEMBLY (2008 LX570)+

5. INSTALL SHOULDER BELT ANCHOR COVER SEAT: REAR NO. 1 SEAT ASSEMBLY (for LH Side): REASSEMBLY (2008 LX570)+

6. INSTALL REAR NO. 1 SEAT HEADREST SUPPORT ASSEMBLY SEAT: REAR NO. 1 SEAT ASSEMBLY (for LH Side): REASSEMBLY (2008 LX570)+

7. INSTALL REAR SEAT HEADREST ASSEMBLY

8. INSTALL REAR SEATBACK BOARD SUB-ASSEMBLY LH SEAT: REAR NO. 1 SEAT ASSEMBLY (for LH Side): REASSEMBLY (2008 LX570)+

9. INSTALL REAR SEATBACK COVER SEAT: REAR NO. 1 SEAT ASSEMBLY (for LH Side): REASSEMBLY (2008 LX570)+

10. INSTALL SEAT CUSHION COVER WITH PAD SEAT: REAR NO. 1 SEAT ASSEMBLY (for LH Side): REASSEMBLY (2008 LX570)+

11. CONNECT NO. 1 SEAT 3 POINT TYPE BELT ASSEMBLY LH SEAT BELT: REAR NO. 1 SEAT INNER BELT ASSEMBLY (for LH Side): INSTALLATION (2008 LX570)+

12. INSTALL REAR NO. 1 SEAT INNER BELT ASSEMBLY LH SEAT BELT: REAR NO. 1 SEAT INNER BELT ASSEMBLY (for LH Side): INSTALLATION (2008 LX570)+

13. INSTALL REAR SEAT UNDER TRAY COVER LH SEAT: REAR NO. 1 SEAT ASSEMBLY (for LH Side): REASSEMBLY (2008 LX570)+

14. INSTALL REAR SEAT CUSHION COVER RH SEAT: REAR NO. 1 SEAT ASSEMBLY (for LH Side): REASSEMBLY (2008 LX570)+

15. INSTALL REAR UNDER SIDE COVER LH SEAT: REAR NO. 1 SEAT ASSEMBLY (for LH Side): REASSEMBLY (2008 LX570)+

16. INSTALL REAR SEATBACK STAY COVER LH SEAT: REAR NO. 1 SEAT ASSEMBLY (for LH Side): REASSEMBLY (2008 LX570)+

17. INSTALL SEAT BELT ANCHOR COVER CAP SEAT: REAR NO. 1 SEAT ASSEMBLY (for LH Side): REASSEMBLY (2008 LX570)+

18. INSTALL REAR NO. 1 SEAT HINGE SUB-ASSEMBLY RH SEAT: REAR NO. 1 SEAT ASSEMBLY (for LH Side): REASSEMBLY (2008 LX570)+

19. INSTALL REAR NO. 1 SEAT HINGE SUB-ASSEMBLY LH SEAT: REAR NO. 1 SEAT ASSEMBLY (for LH Side): REASSEMBLY (2008 LX570)+

20. INSTALL REAR NO. 2 SEAT PROTECTOR SEAT: REAR NO. 1 SEAT ASSEMBLY (for LH Side): REASSEMBLY (2008 LX570)+

21. INSTALL REAR NO. 2 SEAT LEG SIDE COVER SEAT: REAR NO. 1 SEAT ASSEMBLY (for LH Side): REASSEMBLY (2008 LX570)+

22. INSTALL UPPER SEAT TRACK RAIL COVER RH SEAT: REAR NO. 1 SEAT ASSEMBLY (for LH Side): REASSEMBLY (2008 LX570)+

23. INSTALL UPPER SEAT TRACK RAIL COVER LH SEAT: REAR NO. 1 SEAT ASSEMBLY (for LH Side): REASSEMBLY (2008 LX570)+

24. INSTALL REAR NO. 1 SEAT RECLINING COVER RH SEAT: REAR NO. 1 SEAT ASSEMBLY (for LH Side): REASSEMBLY (2008 LX570)+

25. INSTALL REAR NO. 1 SEAT RECLINING COVER LH SEAT: REAR NO. 1 SEAT ASSEMBLY (for LH Side): REASSEMBLY (2008 LX570)+

26. INSTALL RECLINING ADJUSTER RELEASE HANDLE LH SEAT: REAR NO. 1 SEAT ASSEMBLY (for LH Side): REASSEMBLY (2008 LX570)+

27. INSTALL SEAT ADJUSTER BOLT COVER SEAT: REAR NO. 1 SEAT ASSEMBLY (for LH Side): REASSEMBLY (2008 LX570)+

28. INSTALL REAR NO. 1 SEAT ASSEMBLY

(a) Install the rear No. 1 seat assembly SEAT: REAR NO. 1 SEAT ASSEMBLY (for LH Side): INSTALLATION (2008 LX570) .
