Home › Vehicle Interior › Theft Deterrent/Keyless Entry › ID CODE BOX
Last Modified: 11-27-2007 1.6 A
Service Category: Vehicle Interior Section: Theft Deterrent/Keyless Entry
Model Year: 2008 Model: LX570 Doc ID: RM000003BIG001X
Title: THEFT DETERRENT / KEYLESS ENTRY: ID CODE BOX: REMOVAL (2008 LX570)

REMOVAL

1. REMOVE AIR CONDITIONING UNIT

(a) Remove the air conditioning unit HEATING / AIR CONDITIONING: FRONT AIR CONDITIONING UNIT: REMOVAL (2008 LX570) .

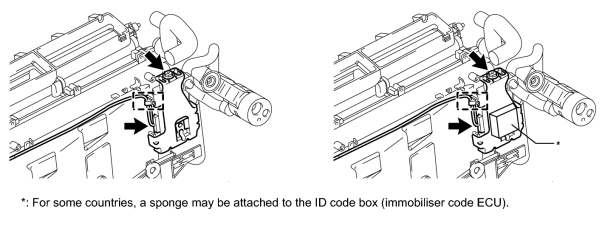

2. REMOVE ID CODE BOX (IMMOBILISER CODE ECU)

(a) Disconnect the connector and detach the clamp.

(b) Remove the screw and ID code box (immobiliser code ECU).
