| Last Modified: 11-27-2007 | 1.6 G | |
| Service Category: Engine/Hybrid System | Section: Engine Control | |
| Model Year: 2008 | Model: LX570 | Doc ID: RM000003BLB004X |
| Title: 3UR-FE ENGINE CONTROL: RELAY: ON-VEHICLE INSPECTION (2008 LX570) | ||
ON-VEHICLE INSPECTION
1. INSPECT CIRCUIT OPENING RELAY (C/OPN)
|
(a) Measure the resistance according to the value(s) in the table below. Standard Resistance:
If the result is not as specified, replace the relay. |
2. INSPECT INTEGRATION RELAY (IG2)
(a) Measure the resistance of the IG2 MAIN fuse.
(1) Remove the IG2 MAIN fuse from the integration relay.
(2) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
IG2 MAIN fuse |
Always |
Below 1 Ω |
If the result is not as specified, replace the IG2 MAIN fuse.
(3) Install the IG2 MAIN fuse to the integration relay.
|
(b) Measure the resistance of the ignition relay No. 2 (IG2) circuit. (1) Measure the resistance according to the value(s) in the table below. Standard Resistance:
If the result is not as specified, replace the integration relay. |
3. INSPECT INTEGRATION RELAY (EFI)
(a) Measure the resistance of the EFI MAIN fuse.
(1) Remove the EFI MAIN fuse from the integration relay.
(2) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
EFI MAIN fuse |
Always |
Below 1 Ω |
If the result is not as specified, replace the EFI MAIN fuse.
(3) Install the EFI MAIN fuse to the integration relay.
|
|
(b) Measure the resistance of the EFI relay circuit. (1) Measure the resistance according to the value(s) in the table below. Standard Resistance:
If the result is not as specified, replace the integration relay. |
4. INSPECT EFI NO. 2 RELAY
|
|
(a) Measure the resistance according to the value(s) in the table below. Standard Resistance:
If the result is not as specified, replace the relay. |
5. INSPECT INTEGRATION RELAY (A/F)
(a) Measure the resistance of the A/F fuse.
(1) Remove the A/F fuse from the integration relay.
(2) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
A/F fuse |
Always |
Below 1 Ω |
If the result is not as specified, replace the A/F fuse.
(3) Install the A/F fuse to the integration relay.
|
(b) Measure the resistance of the A/F sensor heater relay circuit. (1) Measure the resistance according to the value(s) in the table below. Standard Resistance:
If the result is not as specified, replace the integration relay. |

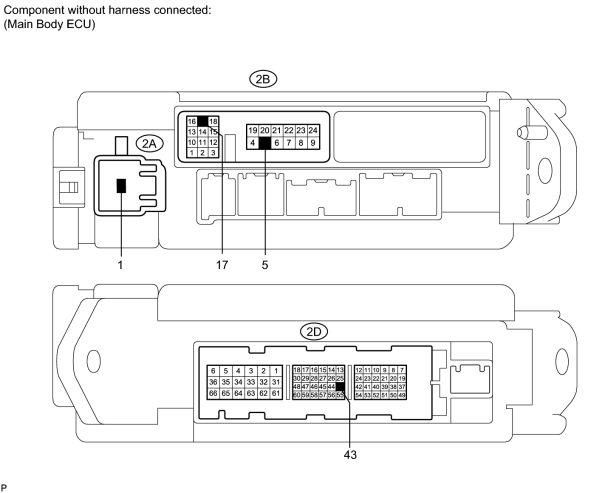

6. INSPECT MAIN BODY ECU (IG1 NO. 1)
(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
2A-1 - 2B-17 |
Battery voltage is not applied to terminals 2B-5 and 2D-43 |
10 kΩ or higher |
|
Battery voltage is applied to terminals 2B-5 and 2D-43 |
Below 1 Ω |
If the result is not as specified, replace the main body ECU.
7. INSPECT STARTER RELAY (ST)
8. INSPECT STARTER CUT RELAY (ST CUT)
9. INSPECT MAIN BODY ECU (ACC RELAY)
|
|
