Home › Audio/Visual/Telematics › Park Assist/Monitoring › WIDE VIEW FRONT MONITOR SYSTEM
Last Modified: 11-27-2007 1.6 C
Service Category: Audio/Visual/Telematics Section: Park Assist/Monitoring
Model Year: 2008 Model: LX570 Doc ID: RM000003EB6000X
Title: PARK ASSIST / MONITORING: WIDE VIEW FRONT MONITOR SYSTEM: DESCRIPTION (2008 LX570)

DTC

5C-40

Camera Picture Error

DESCRIPTION

DTC Code

DTC Detection Condition

Trouble Area

5C-40

Open or short in the front television camera signal circuit.
  • Front television camera
  • Harness or connector
  • Parking assist ECU

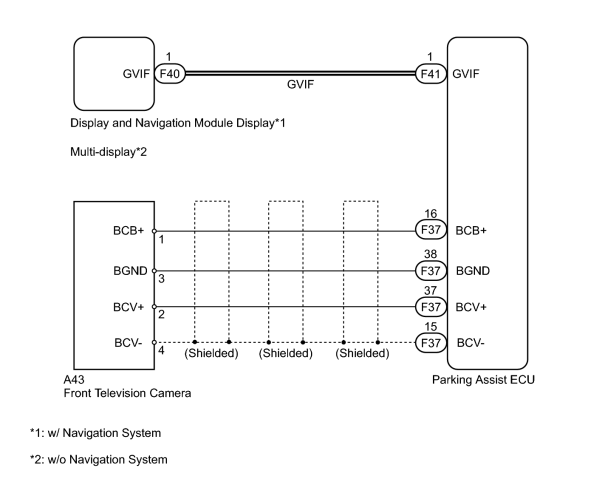

WIRING DIAGRAM

INSPECTION PROCEDURE

NOTICE:

When replacing the parking assist ECU, perform initialization of the front television camera.

PROCEDURE

1.

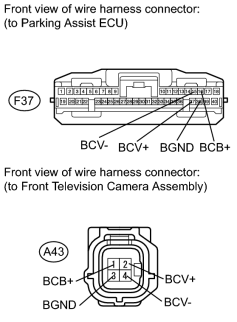

CHECK HARNESS AND CONNECTOR (PARKING ASSIST ECU - FRONT TELEVISION CAMERA)


(a) Disconnect the F37 ECU connector.

(b) Disconnect the A43 camera connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

F37-37 (BCV+) - A43-2 (BCV+)

Always

Below 1 Ω

F37-15 (BCV-) - A43-4 (BCV-)

Always

Below 1 Ω

F37-16 (BCB+) - A43-1 (BCB+)

Always

Below 1 Ω

F37-38 (BGND) - A43-3 (BGND)

Always

Below 1 Ω

F37-37 (BCV+) - Body ground

Always

10 kΩ or higher

F37-15 (BCV-) - Body ground

Always

10 kΩ or higher

F37-38 (BGND) - Body ground

Always

10 kΩ or higher

F37-16 (BCB+) - Body ground

Always

10 kΩ or higher
OK

2.

CHECK PARKING ASSIST ECU


(a) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

F37-16 (BCB+) - F37-38 (BGND)

Wide view front monitor display screen displayed

5.8 to 6.5 V
OK

3.

CHECK FRONT TELEVISION CAMERA ASSEMBLY

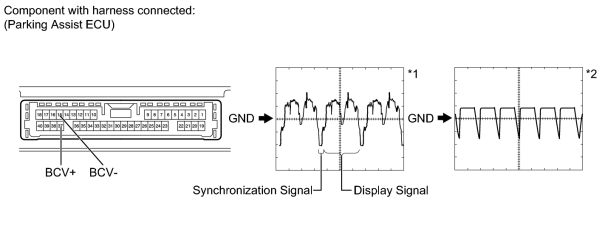

(a) Using an oscilloscope, check the waveform.

Measurement Condition

Item

Content

Terminal No. (Symbol)

F37-37 (BCV+) - F37-15 (BCV-)

Tool Setting
  • 0.2 V/DIV., 20 ms/DIV.*1
  • 0.2 V/DIV., 50 ms/DIV.*2

Condition
  • Wide view front monitor display screen displayed*1
  • Camera lens covered to make image black while wide view front monitor display screen displayed*2
OK

4.

REPLACE HARNESS AND CONNECTOR (GVIF CABLE)

(a) Replace the harness and connector (GVIF cable).

NEXT

5.

CHECK DTC OUTPUT

(a) Clear the DTCs PARK ASSIST / MONITORING: WIDE VIEW FRONT MONITOR SYSTEM: DTC CHECK / CLEAR (2008 LX570) .

(b) Recheck for DTCs PARK ASSIST / MONITORING: WIDE VIEW FRONT MONITOR SYSTEM: DTC CHECK / CLEAR (2008 LX570) .

OK:

DTC 5C-40 is not output.

OK
