| Last Modified: 11-27-2007 | 1.6 C | |
| Service Category: Vehicle Exterior | Section: Door/Hatch | |
| Model Year: 2008 | Model: LX570 | Doc ID: RM000003EUL000X |
| Title: DOOR / HATCH: TAIL GATE CLOSER SYSTEM: DESCRIPTION (2008 LX570) | ||
|
DTC |
B225C |
Tail Gate Panel Position Switch LH |
DESCRIPTION
The No. 2 main body ECU receives the close position switch signal from the lower tail gate lock LH and detects the open/closed status of the lower tail gate. DTC B225C is stored when the ECU receives a close position switch malfunction signal from the lower tail gate lock LH.
|
DTC Code |
DTC Detection Condition |
Trouble Area |
|---|---|---|
|
B225C |
A close position switch malfunction (open or short circuit) signal from the lower tail gate lock LH is received. |
|

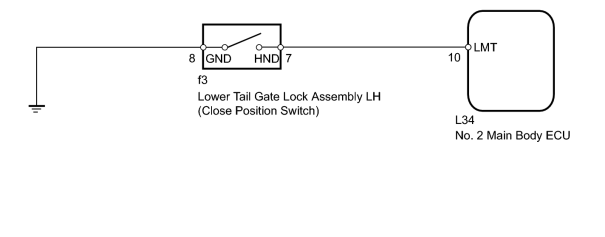

WIRING DIAGRAM
INSPECTION PROCEDURE
PROCEDURE
|
1. |
READ VALUE USING TECHSTREAM (CLOSE POSITION SWITCH) |
(a) Check the Data List for proper functioning of the close position switch.
Body No. 4
|
Tester Display |
Measurement Item/Range |
Normal Condition |
Diagnostic Note |
|---|---|---|---|
|
Position Switch LH |
Close position switch LH signal/ON or OFF |
ON: Lower tail gate closed OFF: Lower tail gate open |
- |
OK:
The display is as specified in the normal condition.
|
|
2. |
CHECK DTC OUTPUT |
(a) Starting with the lower tail gate closed, open and close the lower tail gate 6 times.
(b) Check for DTCs
.
(c) Clear the DTCs
.
(d) Starting with the lower tail gate closed, open and close the lower tail gate 6 times.
(e) Recheck for DTCs
.
OK:
DTC B225C is not output.
|
|
3. |

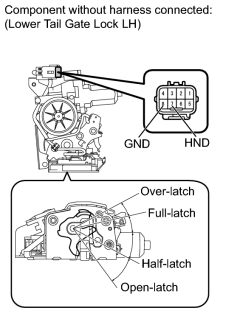

INSPECT LOWER TAIL GATE LOCK ASSEMBLY LH |
(a) Remove the lower tail gate lock LH
.
(b) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
7 (HND) - 8 (GND) |
Over-latch |
Below 1 Ω |
|
7 (HND) - 8 (GND) |
Full-latch |
10 kΩ or higher |
|
7 (HND) - 8 (GND) |
Half-latch |
10 kΩ or higher |
|
7 (HND) - 8 (GND) |
Open-latch |
10 kΩ or higher |
|
|
4. |

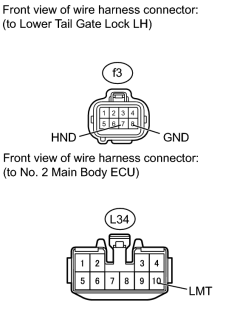

CHECK HARNESS AND CONNECTOR (LOCK - ECU AND BODY GROUND) |
(a) Disconnect the f3 lock connector.
(b) Disconnect the L34 ECU connector.
(c) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
f3-7 (HND) - L34-10 (LMT) |
Always |
Below 1 Ω |
|
f3-8 (GND) - Body ground |
Always |
Below 1 Ω |
|
f3-7 (HND) - Body ground |
Always |
10 kΩ or higher |
|
|
|
