HYBRID SYSTEM
›
P310 HYBRID VEHICLE CONTROL
› HYBRID CONTROL SYSTEM
PARTS LOCATION

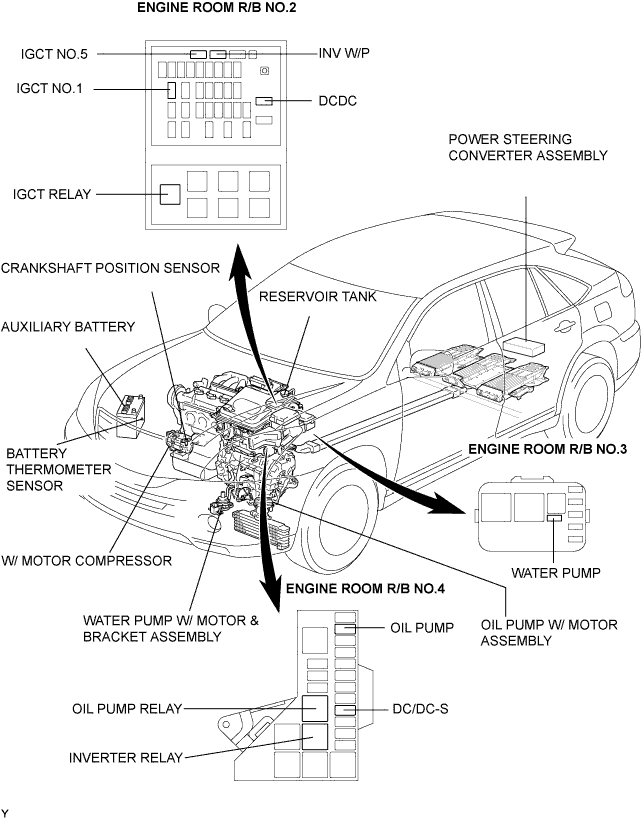

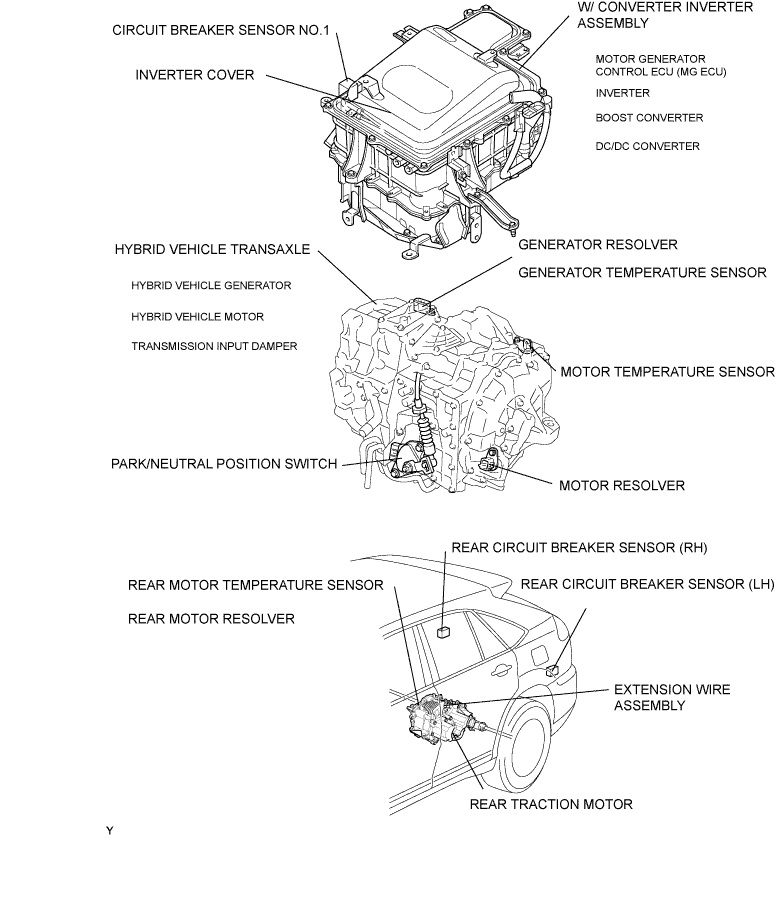

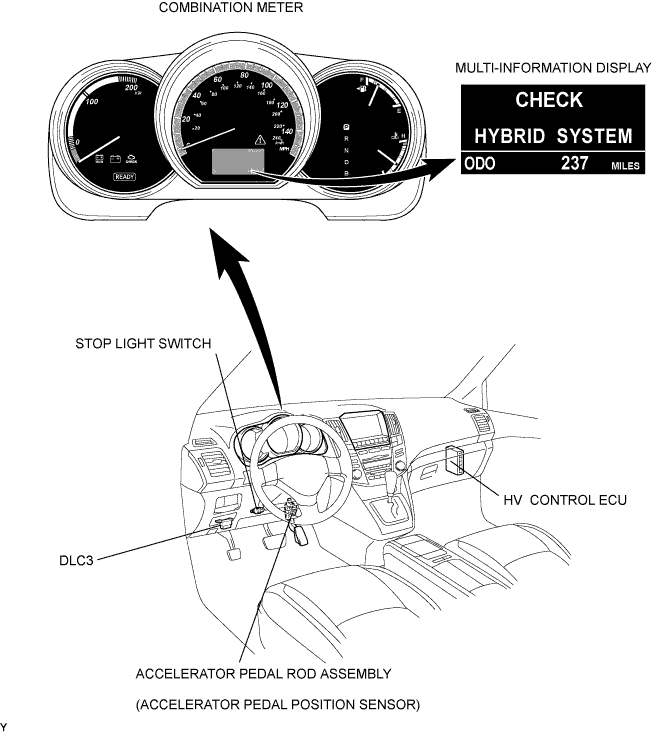

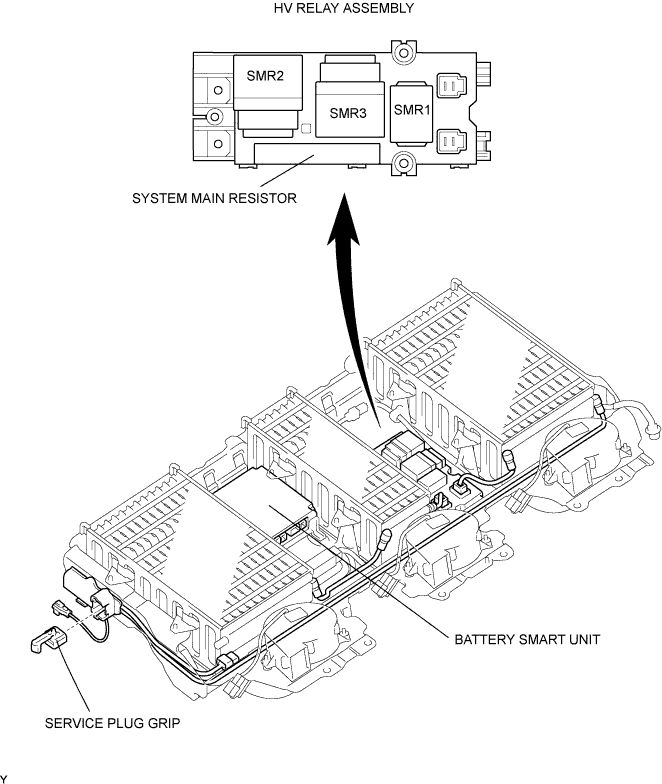

Parts location
1 / 4
2 / 4
3 / 4
4 / 4
