RX400h · Service Manual HYBRID SYSTEM

Home › HYBRID SYSTEM › P310 HYBRID VEHICLE CONTROL › HYBRID CONTROL SYSTEM

SYSTEM DIAGRAM

System information

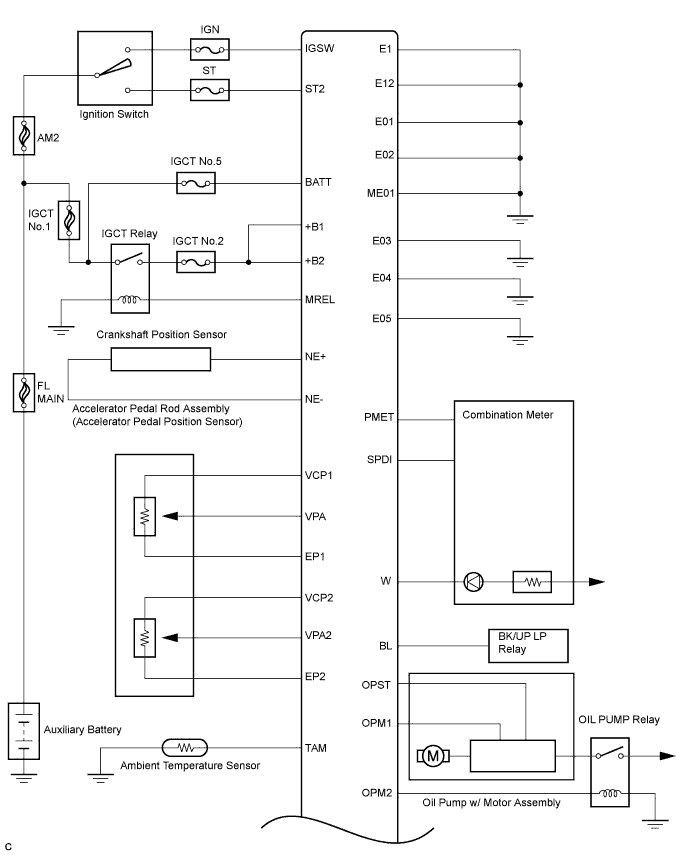

A116275E01

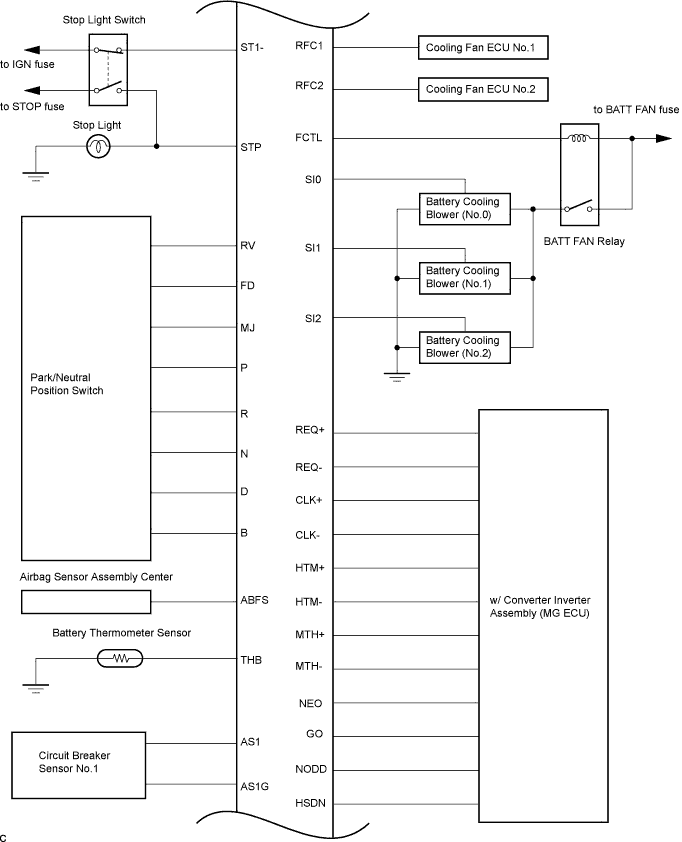

A105134E03

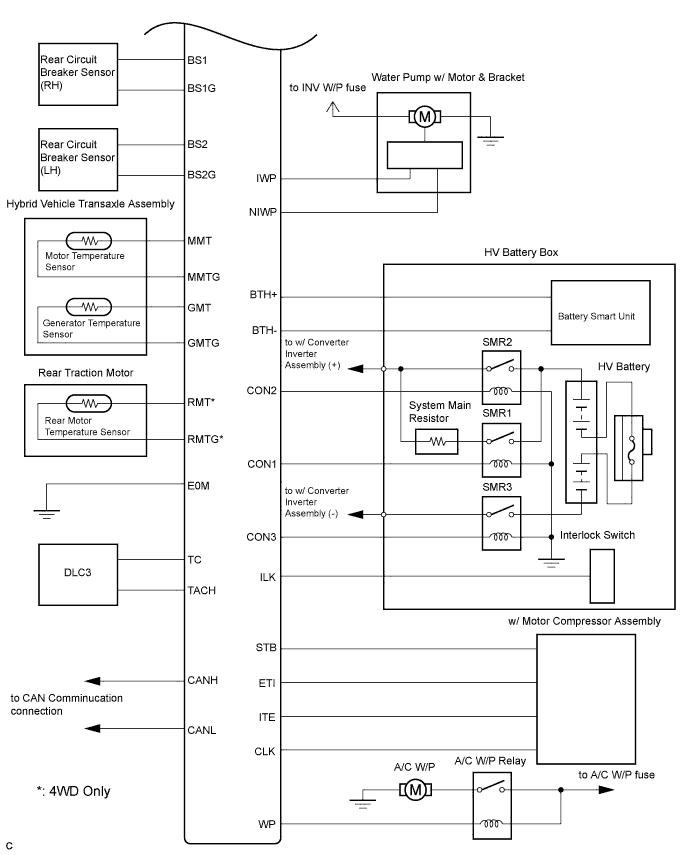

A111587E01
