RX400h · Service Manual ENGINE

Home › ENGINE › 3MZ-FE ENGINE CONTROL SYSTEM › SFI SYSTEM

SYSTEM DIAGRAM

System information

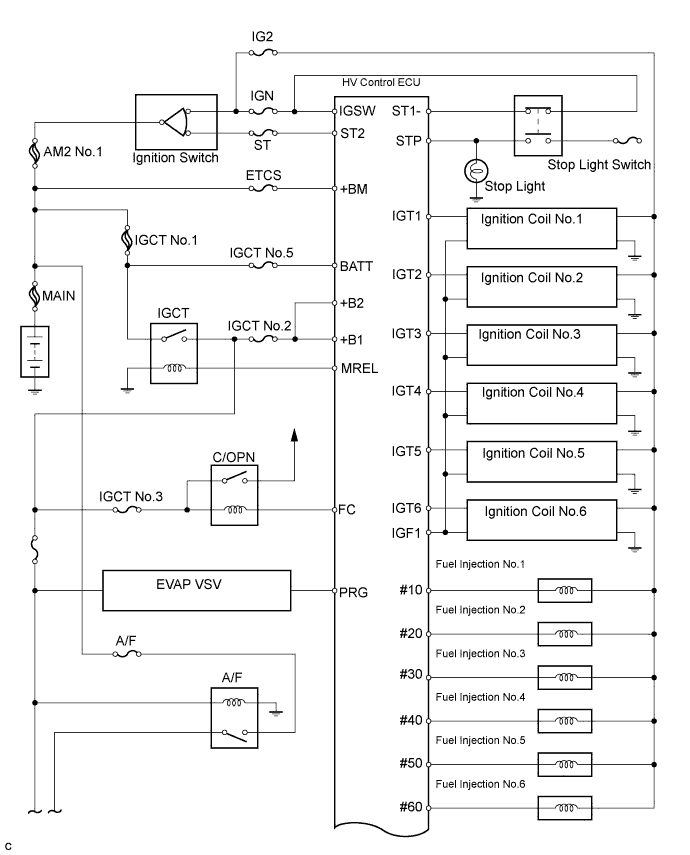

A109167E01

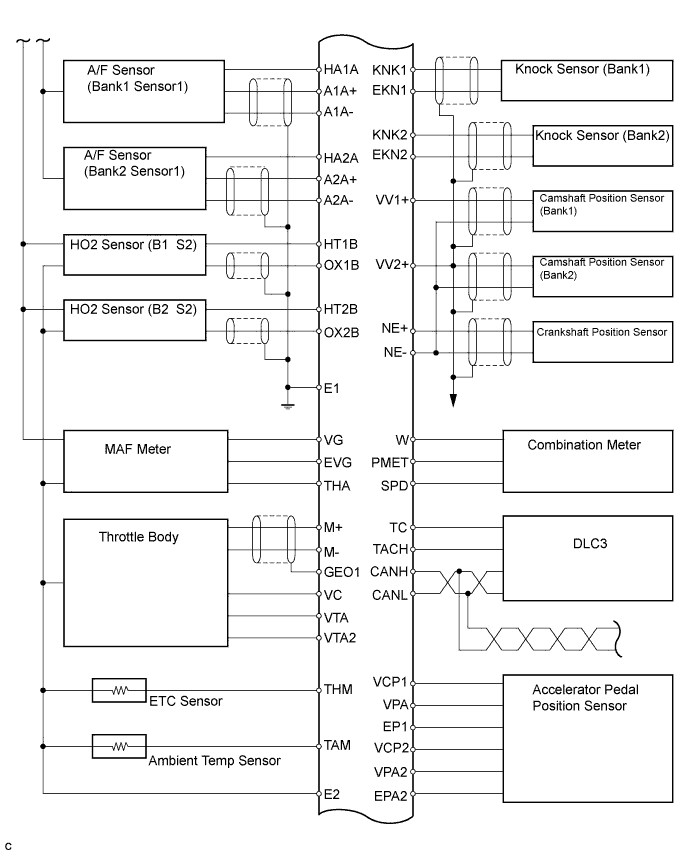

A109168E01

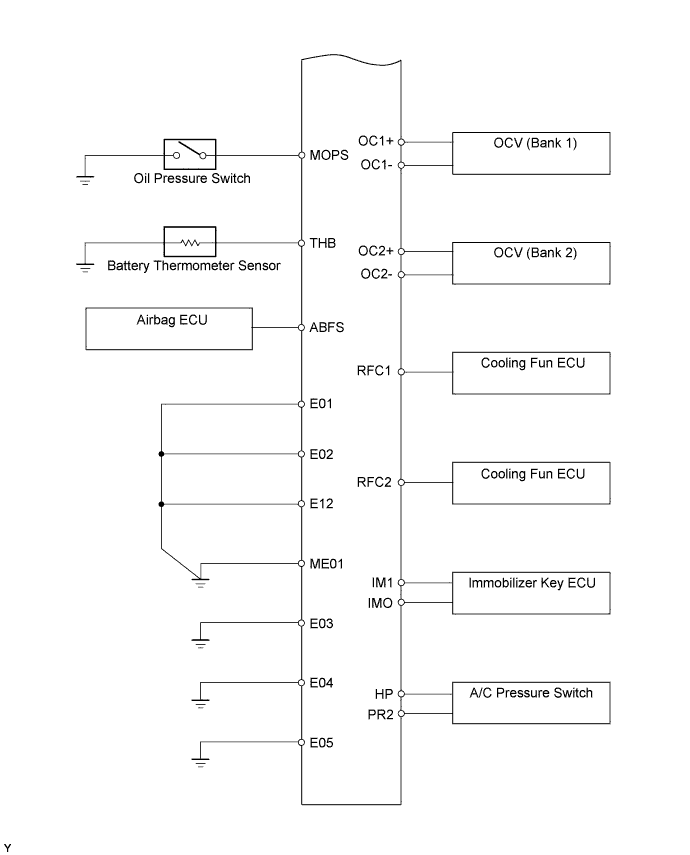

A113722E01
