RX400h · Service Manual ENGINE

Home › ENGINE › 3MZ-FE ENGINE CONTROL SYSTEM › SFI SYSTEM

PARTS LOCATION

Parts location

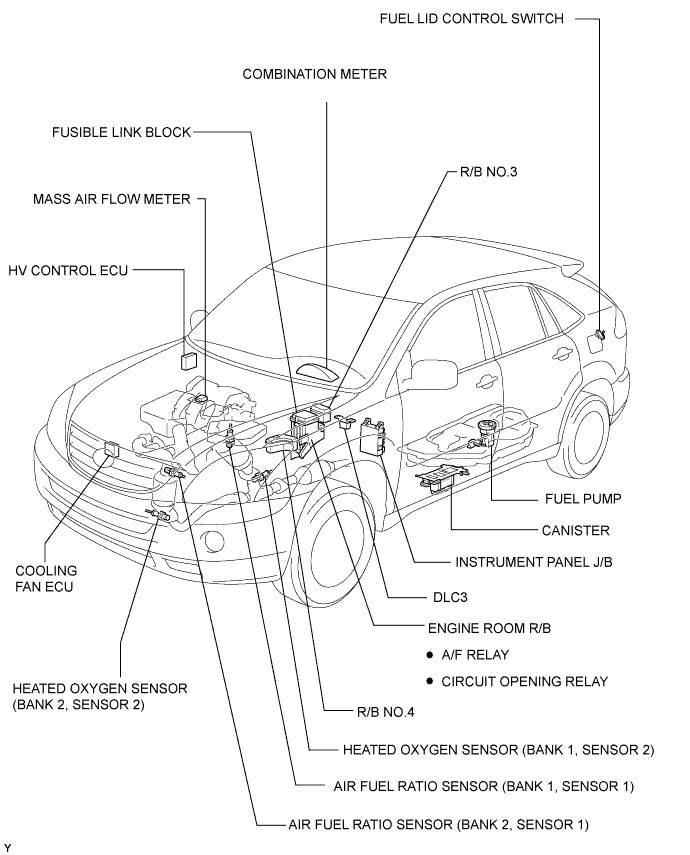

A113721E01

1 / 2

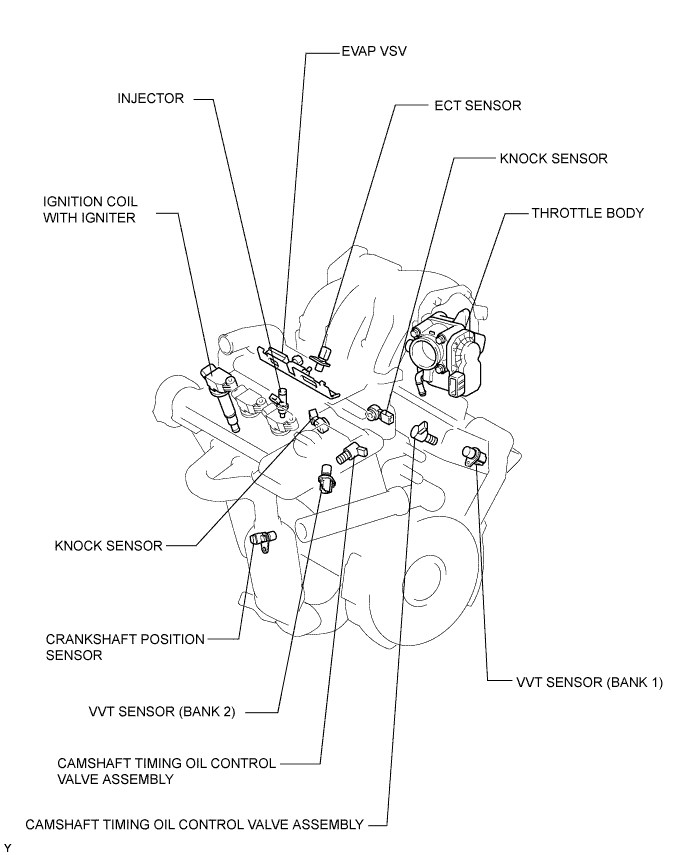

A109159E01

2 / 2
