RX400h · Service Manual HYBRID SYSTEM

REASSEMBLY

Removal / installation


1. INSTALL POSITION INDICATOR HOUSING LOWER

  1. Install the position indicator housing lower to the shift lock control unit.

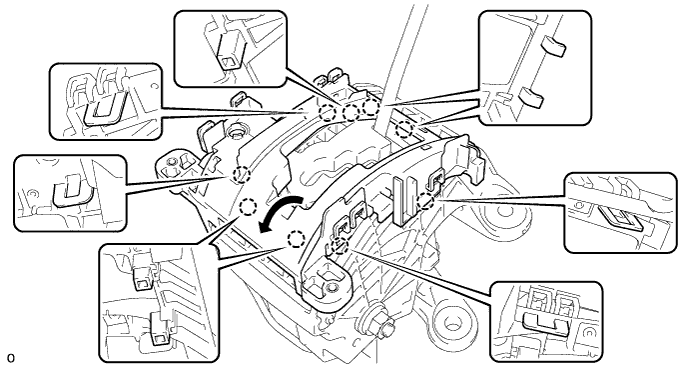

    C113147E01

    HINT:
    Engage the claws securely.


2. INSTALL INDICATOR LIGHT WIRE SUB-ASSEMBLY

  1. C116597
    Install the indicator light wire sub-assembly to the shift lever assembly.


3. INSTALL SHIFT LEVER WIRE GUIDE

  1. Install a new shift lever wire guide No.1 to the shift lever assembly.

  1. C114000E01
    Install the shift lever wire guide No.1 to the indicator light wire. Cut off the shift lever wire guide No.1 as shown in the illustration.


4. INSTALL POSITION INDICATOR SLIDE COVER NO.2

  1. C105738E01
    Install the position indicator slide cover No.2 to the position indicator slide cover.

    NOTICE:
    Be sure to install the position indicator slide cover No.2 in the correct direction.


5. INSTALL POSITION INDICATOR SLIDE COVER

  1. C114001E01
    Install the position indicator slide cover to the position indicator housing lower.

    NOTICE:
    Be sure to install the position indicator slide cover with the mark facing to the front of the vehicle.


6. INSTALL POSITION INDICATOR LIGHT GUIDE

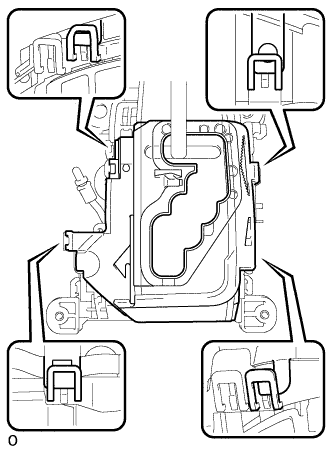

  1. C113143
    Install the position indicator light guide to the position indicator housing lower.

    HINT:
    Engage the claws securely.


7. INSTALL SHIFT LOCK RELEASE BUTTON

  1. Apply MP grease to the shift lock release button and spring.

  1. C113142E01
    Install the shift lock release button, spring and cover.


8. INSTALL POSITION INDICATOR HOUSING

  1. C116132E01
    Install the position indicator housing to the shift lever assembly.

    HINT:
    Engage the claws securely.
