REMOVAL
Removal / installation
- HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.
- Use the same procedures for the RH side and LH side.
| 1. PRECAUTION |
- CAUTION:
- Be sure to read "PRECAUTION" thoroughly before servicing (Click here).
| 2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL |
- CAUTION:
- Wait for 90 seconds after disconnecting the cable to prevent the airbag working.
| 3. REMOVE ROOF HEADLINING ASSEMBLY |
- HINT:
- Refer to the procedures up to "REMOVE ROOF HEADLINING ASSEMBLY" (Click here).
| 4. REMOVE CURTAIN SHIELD AIRBAG ASSEMBLY LH |
Disconnect the connector from the curtain shield airbag assembly LH.
- NOTICE:
- When handling the airbag connector, take care not to damage the airbag wire harness.

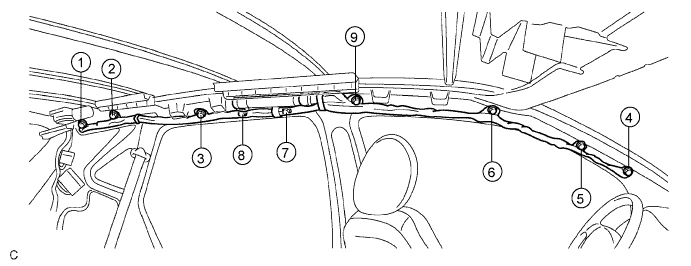

Remove the 9 bolts and the curtain shield airbag assembly LH in the order shown in the illustration.
