RX400h · Service Manual HEATER & AIR CONDITIONING SYSTEM

COMPONENTS

Components

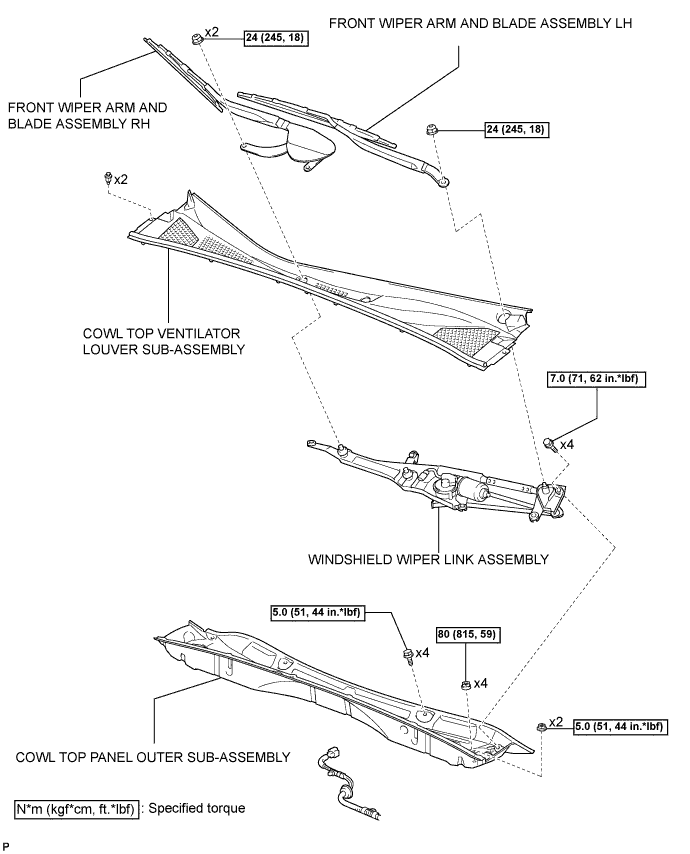

E111317E01

1 / 9

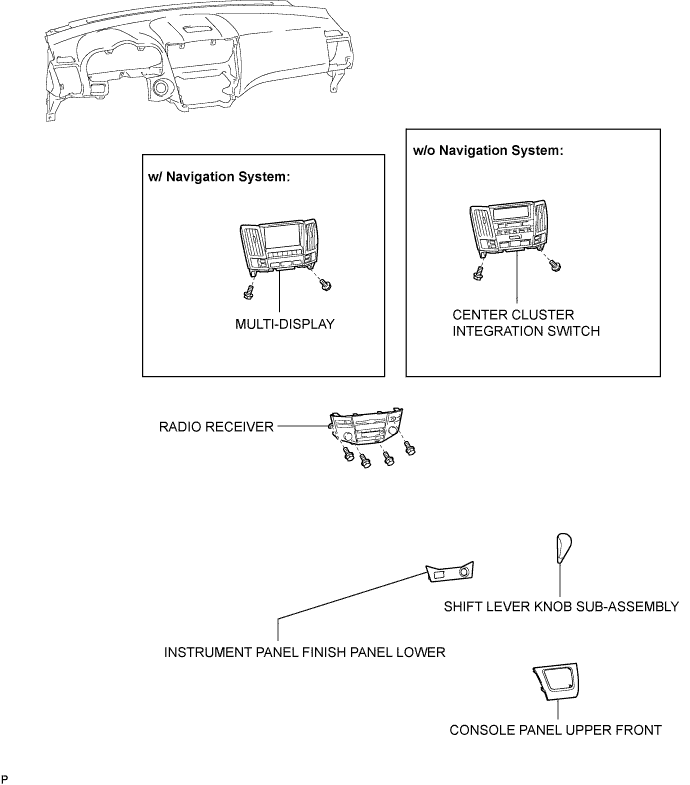

B108535E02

2 / 9

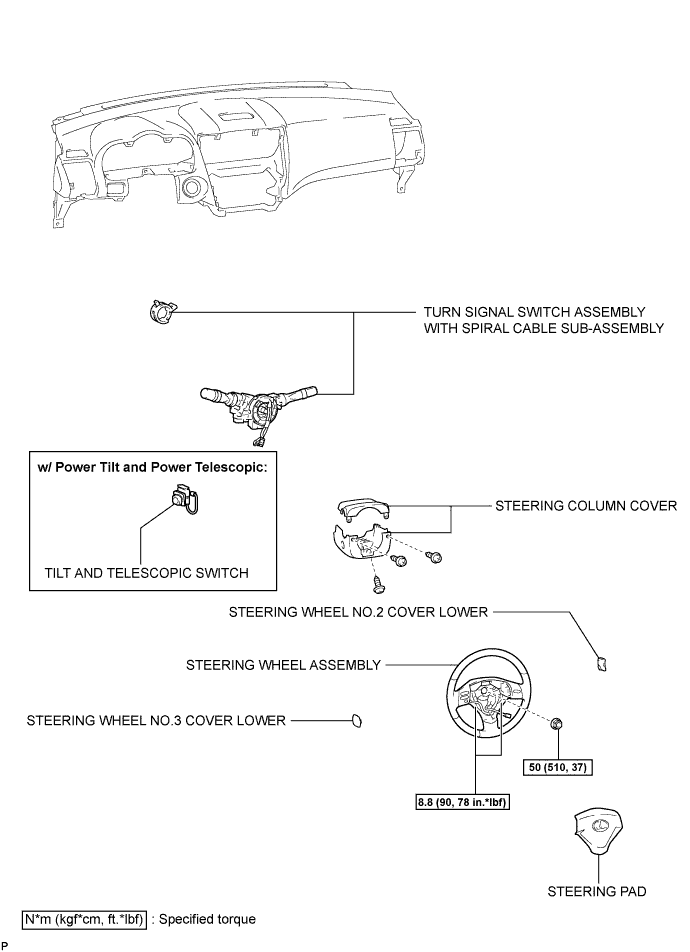

B112165E02

3 / 9

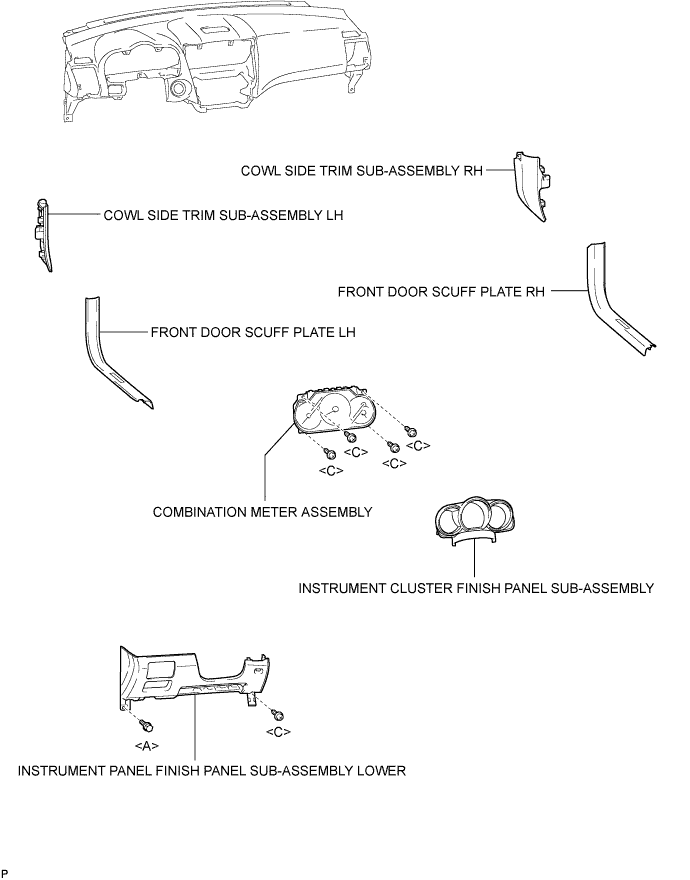

B108537E01

4 / 9

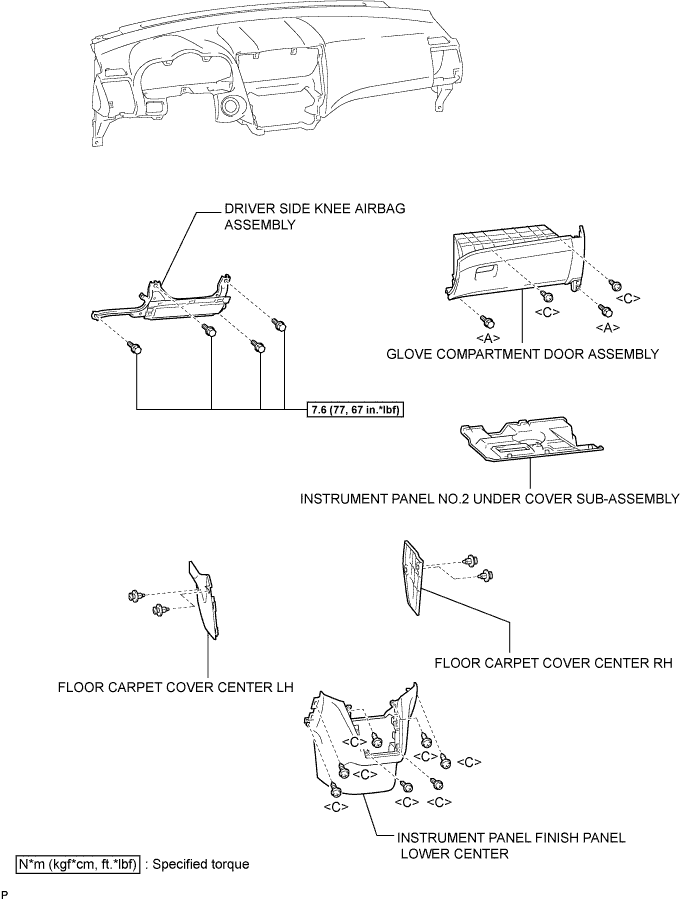

B108539E01

5 / 9

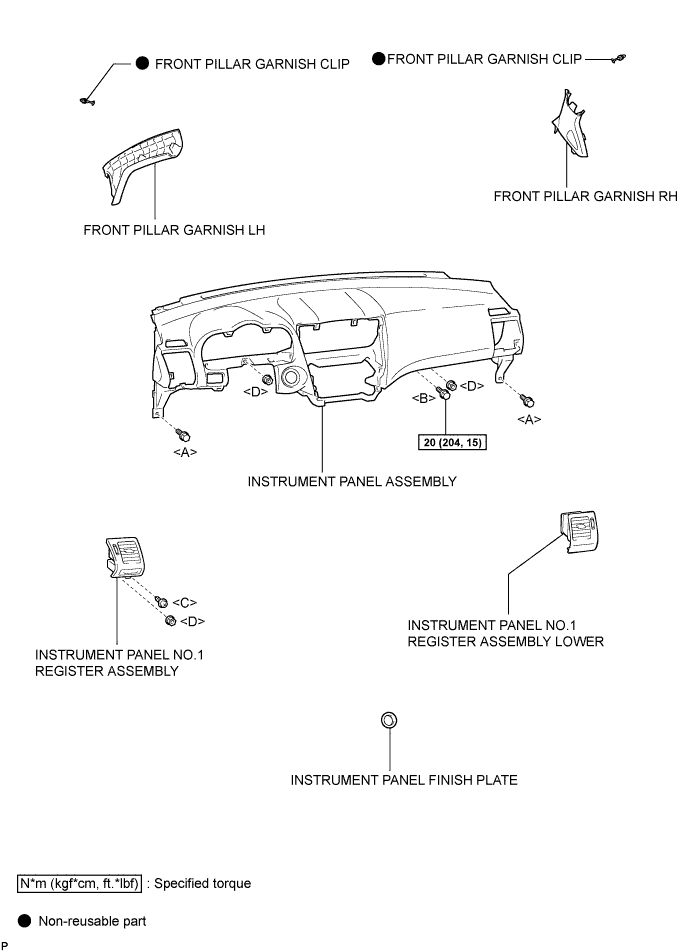

B108538E01

6 / 9

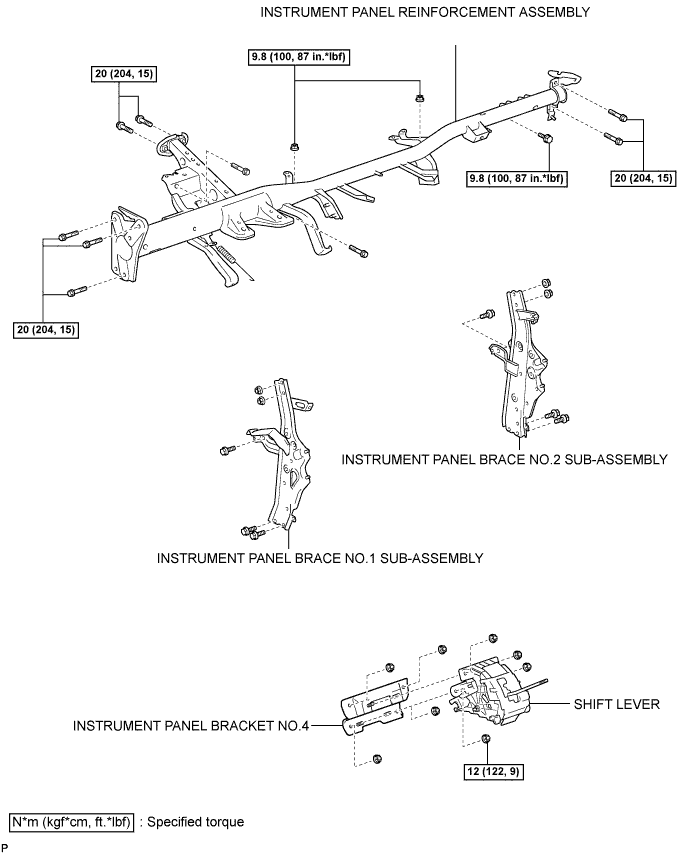

E108149E01

7 / 9

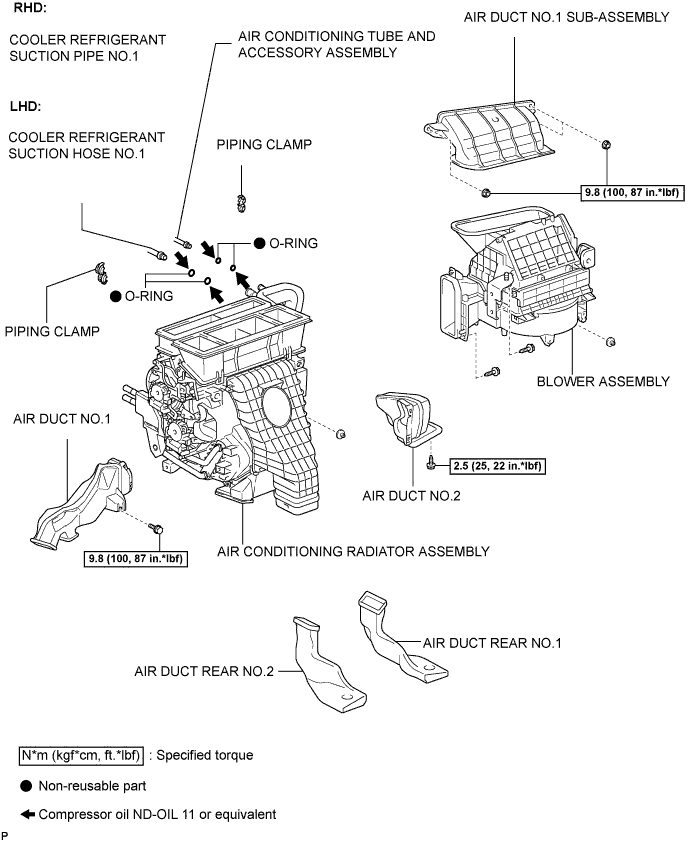

E108150E02

8 / 9

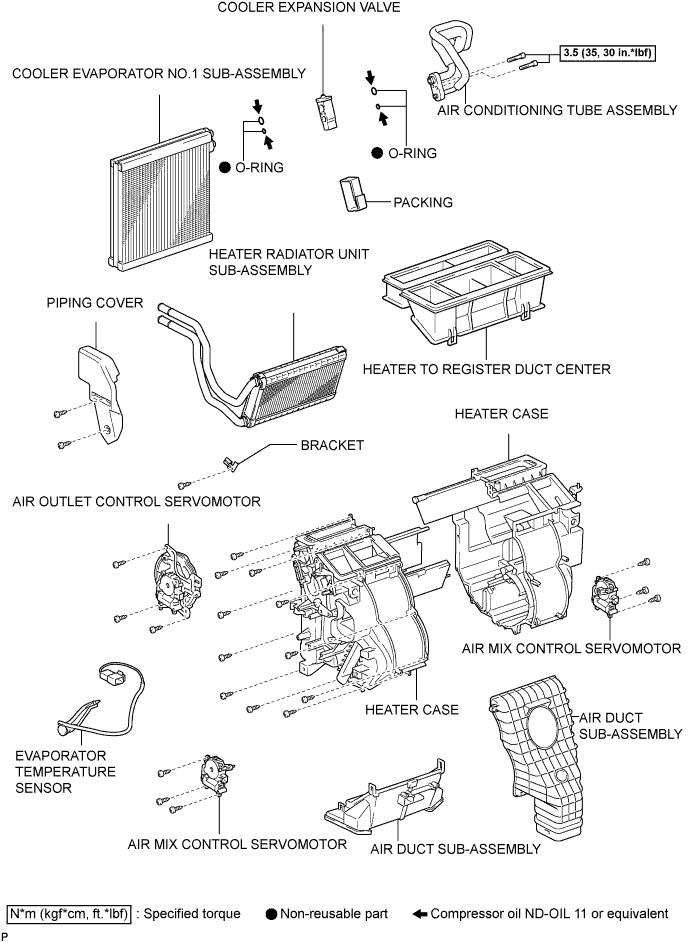

E108151E01

9 / 9
