INSTALLATION

1. Using a knife, cut away any rough adhesive on the contact surface of the vehicle body to ensure the appropriate surface shape.


   HINT:

   Leave as much adhesive on the vehicle body as possible.

2. Clean the contact surface of the vehicle body with a piece of shop rag saturated with cleaner.


   HINT:

   Even if all the adhesive has been removed, clean the vehicle body.

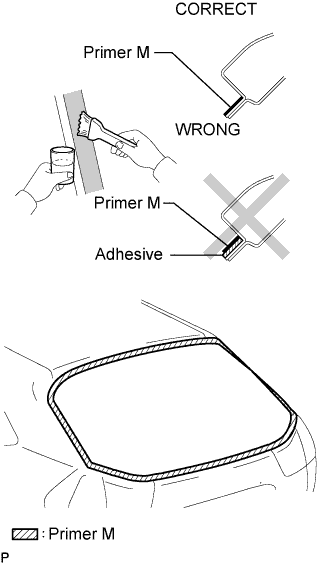

NOTICE:

1. Allow the primer coating to dry for 3 minutes or more.

2. Do not coat the adhesive with Primer M.

3. Do not keep any of the opened Primer M for later use.


Using a brush or sponge, coat the edge of the glass and the contact surface with Primer G.

NOTICE:

1. Allow the primer coating to dry for 3 minutes or more.

2. Do not keep any of the opened Primer G for later use.


Standard dimension:

Area	Dimension
a	8.0 mm (0.315 in.)
b	9.2 mm (0.362 in.)
c	9.2 mm (0.362 in.)
d	8.0 mm (0.315 in.)
e	16.0 mm (0.630 in.)

HINT:

If an area other than that specified is coated by accident, wipe off the primer with a clean shop rag before it dries.

Apply adhesive (Adhesive: Part No. 08850-00801 or equivalent).

1. Cut off the tip of the cartridge nozzle, as shown in the illustration.


   HINT:

   After cutting off the tip, use all adhesive within the time described in the table below.

2. Load the sealer gun with the cartridge.


   Tackfree time:

   Temperature	Tackfree Time
   35°C (95°F)	15 minutes
   20°C (68°F)	1 hour 40 minutes
   5°C (41°F)	8 hours

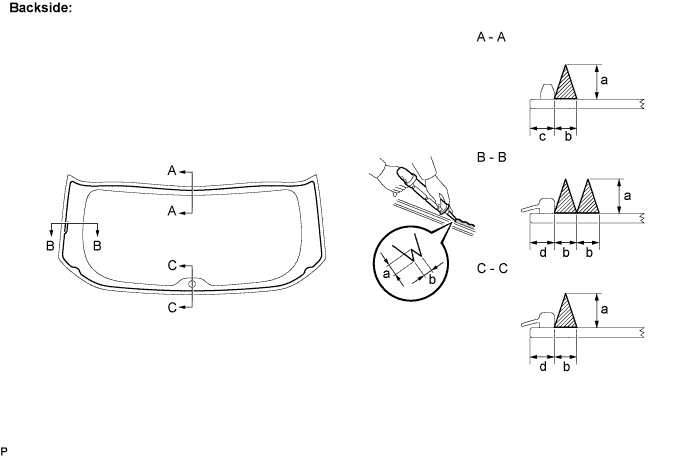

3. Coat the glass with adhesive, as shown in the illustration.




   Standard dimension:

   Area	Dimension
   a	12.0 mm (0.472 in.)
   b	8.0 mm (0.315 in.)
   c	8.0 mm (0.315 in.)
   d	9.2 mm (0.362 in.)

Install the glass to the vehicle body.

1. Hold the back window glass in place securely with tape or equivalent to the vehicle body until the adhesive has hardened.


   NOTICE:

   1. Allow the primer coating to dry for 3 minutes or more.

   2. Check that the clips are attached to the vehicle body correctly.

   3. Check the clearance between the vehicle body and glass.


2. Lightly press the front surface of the glass to ensure a close fit.


3. Using a scraper, remove any excess or protruding adhesive.


   NOTICE:

   Take care not to drive the vehicle for the time described in the table below.

   Minimum time:

   Temperature	Minimum time prior to driving vehicle
   35°C (95°F)	1 hour 30 minutes
   20°C (68°F)	5 hours
   5°C (41°F)	24 hours

Coat the installation part of the mouldings with Primer G.

NOTICE:

1. Allow the primer coating to dry for 3 minutes or more.

2. Do not apply too much primer.

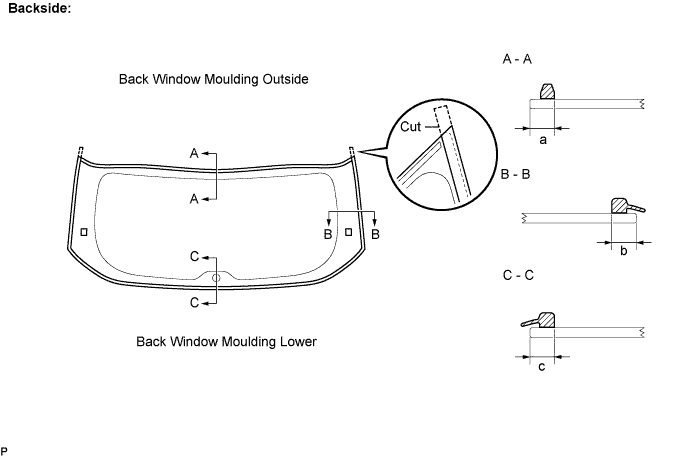

Install a new mouldings, applying double-sided tape all the way around the glass except where the mouldings is installed, as shown in the illustration.

Standard dimension:

Area	Dimension
a	8.0 mm (0.315 in.)
b	9.2 mm (0.362 in.)
c	9.2 mm (0.362 in.)

Connect the connector.

Conduct a leak test after the adhesive has completely hardened.

Seal any leaks with auto glass sealer.

Connect the connector.

Torque:

5.5 N*m{ 56 kgf*cm , 49 in.*lbf }

Connect the connector.

Install the 5 bolts and 2 grommets.

Torque:

9.8 N*m{ 100 kgf*cm , 87 in.*lbf }

Clean the wiper arm serrations.

Clean the wiper pivot serrations with a wire brush (when reinstalling).

Torque:

5.5 N*m{ 56 kgf*cm , 49 in.*lbf }
