RX400h · Service Manual SUSPENSION & AXLE

REMOVAL

Removal / installation


1. REMOVE REAR WHEEL

2. SEPARATE PARKING BRAKE NO.3 CABLE ASSEMBLY

  1. C107671E02
    Remove the nut, and separate the parking brake cable assembly No.3.


3. REMOVE REAR STRUT ROD

  1. C107307E01

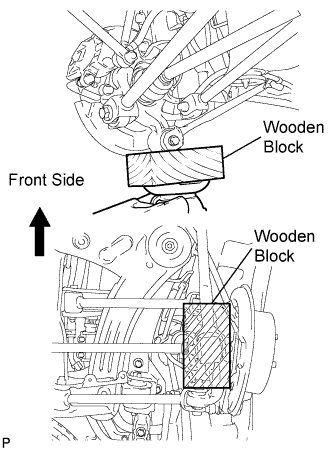

    Support the rear axle carrier with a jack.

  1. C107672E01
    Remove the bolt and nut, and disconnect the strut rod (front side).

    NOTICE:
    When removing the bolt, keep the nut from rotating.

  1. C107673E01
    Remove the bolt, nut and strut rod from the rear axle carrier.

    NOTICE:
    When removing the bolt, keep the nut from rotating.
