RX400h · Service Manual BODY ELECTRICAL

DISASSEMBLY

Removal / installation


1. REMOVE NO.2 HEADLIGHT BULB

  1. E068311
    Remove the No.2 headlight bulb as shown in the illustration.


2. REMOVE HEADLIGHT SOCKET COVER

  1. E068308
    Separate the headlight socket cover as shown in the illustration.

  1. Remove the headlight socket cover from the headlight cord.


3. REMOVE NO.1 HEADLIGHT BULB

  1. E068528
    Separate the light control ECU socket as shown in the illustration.

  1. E068310
    Release the set spring and remove the No.1 headlight bulb.


4. REMOVE FRONT TURN SIGNAL LIGHT BULB

  1. E068312
    Turn in the direction indicated by the arrow and remove the front turn signal light bulb and the front turn signal light socket as a unit.


5. REMOVE FRONT TURN SIGNAL LIGHT SOCKET

  1. Remove the front turn signal light bulb from the front turn signal light socket.


6. REMOVE CLEARANCE LIGHT BULB

  1. E068313
    Turn in the direction indicated by the arrow and remove the clearance light bulb and the No.1 headlight socket as a unit.


7. REMOVE NO.1 HEADLIGHT SOCKET

  1. Remove the clearance light bulb from the No.1 headlight socket.


8. REMOVE NO.1 HEADLIGHT COVER

  1. E068316
    Remove the 4 screws and No.1 headlight cover.


9. REMOVE HEADLIGHT GASKET

10. REMOVE LIGHT CONTROL ECU

  1. E069111
    Remove the 2 screws and separate the light control ECU.

  1. I037719E01
    Disengage the claw, disconnect the connector and remove the light control ECU.


11. REMOVE LIGHT CONTROL ECU (w/ AFS)

  1. E068520
    Remove the 2 screws and the cover.

  1. E069111
    Remove the 2 screws and separate the light control ECU.

  1. I037719E01
    Disengage the claw, disconnect the connector and remove the light control ECU.


12. REMOVE HEADLIGHT CORD

13. REMOVE HEADLIGHT LEVELING MOTOR

  1. E108644E01
    Turn in the direction indicated by the arrow and disengage the pin.

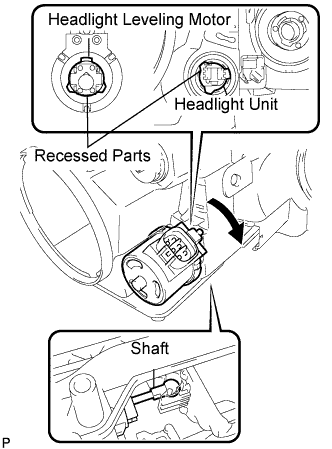

  1. E108645E02
    Turn the headlight leveling motor to align the recessed parts with the headlight unit.

  1. Disengage the tip of the shaft, and remove the headlight leveling motor.


14. REMOVE HEADLIGHT LEVELING MOTOR BASE PACKING

15. REMOVE HEADLIGHT SWIVEL ECU (w/ AFS)

  1. E068315
    Disconnect the connector.

  1. Remove the screw and the headlight swivel ECU.


16. REMOVE HEADLIGHT SWIVEL ACTUATOR (w/ AFS)

  1. E068529
    Disconnect the connector.

  1. Remove the 2 screws and headlight swivel actuator.
