ADJUSTMENT
Removal / installation
| 1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL |
| 2. INSPECT REAR DOOR |

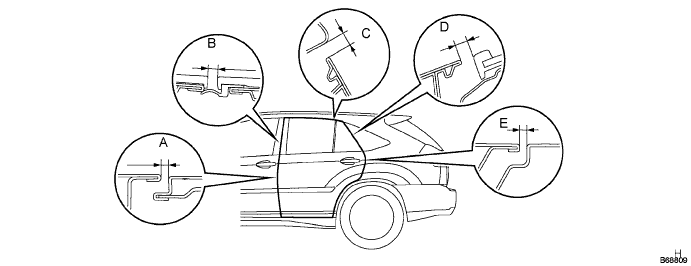

Check that the clearance is within the standard range.
Standard range: A
4.5 +- 1.5 mm (0.177+-0.059 in.)
B
4.8 +- 1.5 mm (0.189+-0.059 in.)
C
5.1 +- 1.5 mm (0.201+-0.059 in.)
D
6.8 +- 1.5 mm (0.268+-0.059 in.)
E
4.5 +- 1.5 mm (0.177+-0.059 in.)
| 3. ADJUST REAR DOOR |
Loosen the bolts on the pillar side to adjust the door front and back, up and down.
- Torque:
- 26 N*m{ 265 kgf*cm , 19 ft.*lbf }
Loosen the bolts on the door side to adjust the door up and down, and the door front side to side.
- Torque:
- 27 N*m{ 275 kgf*cm , 20 ft.*lbf }
- HINT:
- Perform this procedure after replacing the centering bolt with the supplied bolt.
When adjusting the door rear side to side and the rear door lock striker plate assembly, use a "torx" socket wrench (T40), to loosen the screws until the striker can move. Lightly tap it with a brass bar for adjustment.
- Torque:
- 23 N*m{ 235 kgf*cm , 17 ft.*lbf }
| 4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL |
| 5. PERFORM INITIALIZATION |
