INSTALLATION
Removal / installation
| 1. INSTALL LUGGAGE COMPARTMENT DOOR CLOSER ASSEMBLY |

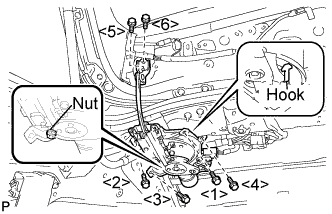

Firmly engage the hook to the roof.
- NOTICE:
- Do not drop the luggage compartment door closer assembly.
Install the luggage compartment door closer assembly with the 6 bolts in the order as shown in the illustration.
- Torque:
- 31 N*m{ 316 kgf*cm , 23 ft.*lbf }
Tighten the nut.
- Torque:
- 5.5 N*m{ 56 kgf*cm , 49 in.*lbf }
Connect the connector.
Install the cover with the 2 magic fasteners.
| 2. INSTALL ROOF HEADLINING ASSEMBLY |
