RX400h · Service Manual BODY

REMOVAL

Removal / installation


1. REMOVE ROOF HEADLINING ASSEMBLY
(Click here)

2. REMOVE LUGGAGE COMPARTMENT DOOR CLOSER ASSEMBLY

  1. B109567E01
    Remove the 2 magic fasteners and the cover.

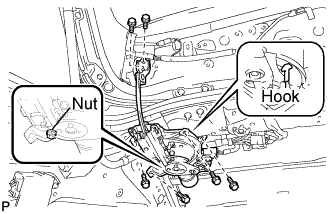

  1. B116251E01
    Disconnect the connector.

  1. Loosen the nut.

  1. Remove the 6 bolts.

    NOTICE:
    Do not drop the luggage compartment door closer assembly.

  1. Disengage the hook and remove the luggage compartment door closer assembly.
