RX400h · Service Manual ENGINE

REMOVAL

Removal / installation


1. REMOVE TIMING BELT
(Click here)

2. REMOVE CRANKSHAFT TIMING PULLEY

  1. Remove the bolt and the timing belt plate.

  1. A108143E01
    Install the pulley bolt to the crankshaft.

  1. Using SST, remove the crankshaft timing pulley.

    SST
    09950-50013   (09951-05010, 09952-05010, 09953-05020, 09954-05011)

    NOTICE:
    1. Do not scratch the sensor part of the crankshaft timing pulley.
    2. Before using SST, apply lubricating oil to the threads and tip of the center bolt 150.


3. REMOVE OIL PUMP SEAL

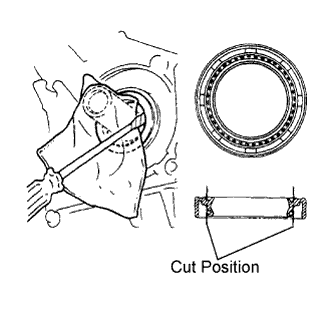

  1. A112529E02
    Using a knife, cut off the oil seal lip.

  1. Using a screwdriver with the tip taped pry out the oil seal.

    NOTICE:
    After the removal, check the crankshaft for damage. If it is damaged, smooth the surface with 400-grit sandpaper.
