INSPECTION

Inspection

INSPECT ENGINE COOLANT TEMPERATURE SENSOR

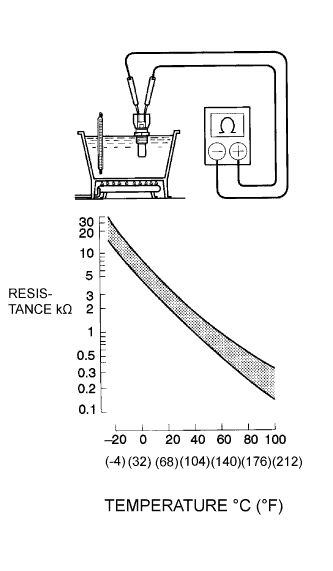

1. Using an ohmmeter, measure the resistance between the terminals.


   Standard resistance:

   Condition	Specified Condition
   20°C (68°F)	2.32 to 2.59 kΩ
   80°C (176°F)	0.310 to 0.326 kΩ

   If the result is not as specified, replace the sensor.


   NOTICE:

   In case of checking the water temperature sensor in the water, do not allow water to go into the terminals. After checking, dry the sensor.
