RX400h · Service Manual BODY

REMOVAL

Removal / installation


1. REMOVE FRONT BUMPER STAY CENTER

  1. B115757
    Remove the 5 clips and front bumper stay center.


2. REMOVE FRONT BUMPER ASSEMBLY

  1. B110043
    Using a hexagon 4 mm wrench, remove the hexagon screw.

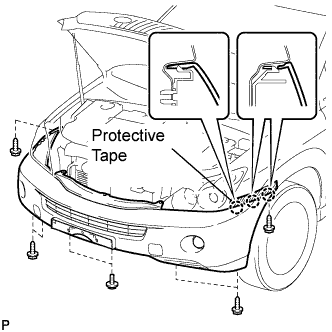

  1. B115758E01
    Put protective tape under the front fender.

  1. Remove the 6 screws and 2 bolts.

  1. Release the 6 claws and front bumper assembly.

  1. w/ headlight washer:

    1. Remove the washer hose clip.

  1. Disconnect the fog light connectors.
