RX400h · Service Manual BODY

DISASSEMBLY

Removal / installation


1. REMOVE FRONT BUMPER ENERGY ABSORBER

  1. B112806
    Remove the front bumper energy absorber.


2. REMOVE FRONT BUMPER STAY REINFORCEMENT

  1. B112807
    Remove the 4 clips and front bumper stay reinforcement.


3. REMOVE FRONT BUMPER REINFORCEMENT

  1. B113009
    Remove the 6 bolts and front bumper reinforcement.


4. REMOVE FRONT BUMPER STAY NO.2 LH

  1. B109323E01
    Remove the 2 screws.

  1. Release the 3 claws and front bumper stay No.2 LH.


5. REMOVE FRONT BUMPER STAY NO.2 RH

6. REMOVE FRONT BUMPER EXTENSION MOUNTING BRACKET

  1. B115754E01
    Remove the 2 bolts.

  1. Release the 2 claws and remove the front bumper extension mounting bracket.


7. REMOVE HEADLIGHT CLEANER WASHER NOZZLE LH

  1. I033686E01
    Extend the headlight cleaner washer nozzle.

  1. Disengage the 2 claws and remove the headlight cleaner washer nozzle.


8. REMOVE HEADLIGHT CLEANER WASHER NOZZLE RH

9. REMOVE HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY LH

  1. E110458E01
    Disconnect the headlight washer hose.

  1. Remove the 2 bolts.

  1. Disengage the 2 claws and remove the headlight washer actuator.


10. REMOVE HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY RH

11. REMOVE HEADLIGHT CLEANER HOSE

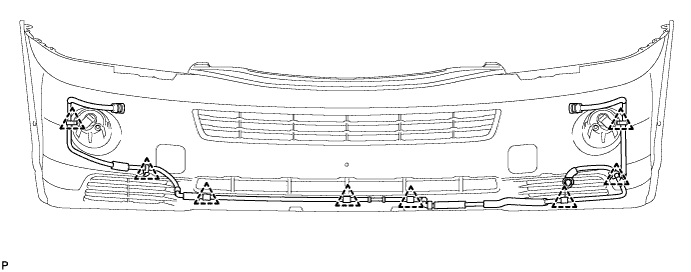

  1. Release the 8 clamps and remove the headlight cleaner hose No.1.

    B112804E01


12. REMOVE RADIATOR GRILLE BRACKET NO.2

  1. B109319E01
    Release the 6 claws and remove the 3 radiator grille brackets No.2.


13. REMOVE RADIATOR GRILLE GARNISH CLIP

14. REMOVE RADIATOR GRILLE GARNISH NO.3

  1. B109317E01
    Release the 6 claws and remove the 3 radiator grille garnishes No.3.


15. REMOVE RADIATOR GRILLE GARNISH NO.2

16. REMOVE RADIATOR GRILLE GARNISH

  1. B109318E01
    Release the 6 claws and remove the 3 radiator grille garnishes.


17. REMOVE FOG LIGHT MOUNTING BRACKET LH

  1. B109325
    Remove the 2 screws and fog light mounting bracket LH.


18. REMOVE FOG LIGHT MOUNTING BRACKET RH

19. REMOVE FRONT BUMPER HOLE COVER LH

  1. B109326E01
    Release the 2 claws and hook, and remove the front bumper hole cover LH.


20. REMOVE FRONT BUMPER HOLE COVER RH

21. REMOVE FOG LIGHT PROTECTOR LH

  1. B110042E01
    Release the 2 claws and fog light protector LH.


22. REMOVE FOG LIGHT PROTECTOR RH

23. REMOVE FOG LIGHT ASSEMBLY LH

  1. E108649E01
    Disengage the 2 claws and 2 pins and remove the fog light assembly.


24. REMOVE FOG LIGHT ASSEMBLY RH
