INSTALLATION

Removal / installation


1. INSTALL REAR BUMPER ASSEMBLY

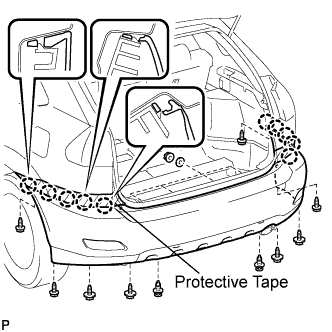

  1. B109327E01
    Install the rear reflector connectors.

  1. Engage the 10 claws and install the rear bumper assembly

  1. Install the 8 screws and 2 clips.

  1. Install the 4 nuts.

    Torque:
    8.0 N*m{ 81 kgf*cm , 71 in.*lbf }


2. INSTALL REAR BUMPER STOPPER UPPER

3. INSTALL REAR FLOOR FINISH PLATE

  1. B110477
    Engage the 2 claws and 6 clips, and install the rear floor finish plate.

  1. Install the 2 clips.


4. INSTALL BACK DOOR WEATHERSTRIP

5. INSTALL DECK FLOOR BOX REAR

  1. B110023
    Install the deck floor box rear with the 2 clips.
