RX400h · Service Manual BODY

REMOVAL

Removal / installation


1. REMOVE REAR DOOR INSIDE HANDLE BEZEL PLUG

  1. B069469
    Using a screwdriver wrapped with protective tape, disengage the 3 claws and remove the rear door inside handle bezel plug.


2. REMOVE REAR DOOR ARMREST BASE PANEL ASSEMBLY

  1. B068811
    Using a screwdriver wrapped with protective tape, disengage the 2 claws and 2 clips.

  1. Disconnect the connector and remove the rear door armrest base panel assembly.


3. REMOVE REAR DOOR ARMREST COVER

  1. B112331
    Remove the rear door armrest cover.


4. REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY

  1. B112332E01
    Remove the 2 screws.

  1. Pulling the front door trim board sub-assembly in the direction of the arrow shown in the illustration, disengage the 13 clips.

  1. Disconnect the cable and each connector from the inside handle and the rear door trim board sub-assembly, remove the rear door trim board sub-assembly.


5. REMOVE REAR DOOR BELT MOULDING ASSEMBLY

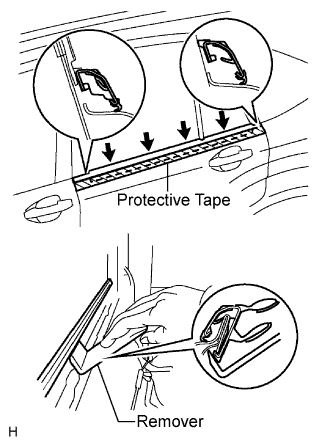

  1. B068605E01
    Put protective tape under the moulding.

  1. Using a moulding remover, disengage the claws and remove the rear door belt moulding assembly LH.

    HINT:
    Tape the remover tip before use.
