REASSEMBLY
Removal / installation
| 1. INSTALL FOG LIGHT ASSEMBLY LH |

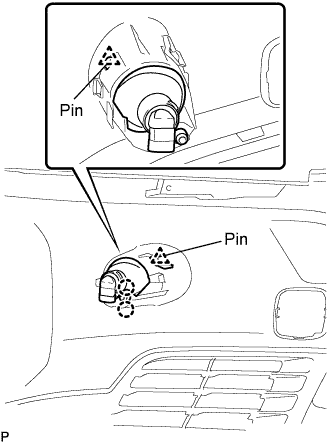

Install the fog light assembly with the 2 claws and the 2 pins.
| 2. INSTALL FOG LIGHT ASSEMBLY RH |
| 3. INSTALL FOG LIGHT PROTECTOR LH |
| 4. INSTALL FOG LIGHT PROTECTOR RH |
| 5. INSTALL FRONT BUMPER HOLE COVER LH |
| 6. INSTALL FRONT BUMPER HOLE COVER RH |
| 7. INSTALL FOG LIGHT MOUNTING BRACKET LH |
| 8. INSTALL FOG LIGHT MOUNTING BRACKET RH |
| 9. INSTALL RADIATOR GRILLE GARNISH |
| 10. INSTALL RADIATOR GRILLE GARNISH NO.2 |
| 11. INSTALL RADIATOR GRILLE GARNISH NO.3 |
| 12. INSTALL RADIATOR GRILLE GARNISH CLIP |
| 13. INSTALL RADIATOR GRILLE BRACKET NO.2 |
| 14. INSTALL HEADLIGHT CLEANER HOSE |
| 15. INSTALL HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY LH |
Install the headlight washer actuator with the 2 bolts and the 2 claws.
- Torque:
- 4.5 N*m{ 46 kgf*cm , 40 in.*lbf }
Connect the headlight washer hose.
| 16. INSTALL HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY RH |
| 17. INSTALL HEADLIGHT CLEANER WASHER NOZZLE LH |
| 18. INSTALL HEADLIGHT CLEANER WASHER NOZZLE RH |
| 19. INSTALL FRONT BUMPER EXTENSION MOUNTING BRACKET |
| 20. INSTALL FRONT BUMPER STAY NO.2 RH |
| 21. INSTALL FRONT BUMPER STAY NO.2 LH |
| 22. INSTALL FRONT BUMPER REINFORCEMENT |
Install the front bumper reinforcement with the 6 bolts.
- Torque:
- 77 N*m{ 785 kgf*cm , 57 ft.*lbf }
| 23. INSTALL FRONT BUMPER STAY REINFORCEMENT |
| 24. INSTALL FRONT BUMPER ENERGY ABSORBER |
