RX400h · Service Manual BODY ELECTRICAL

REMOVAL

Removal / installation


1. REMOVE REAR DOOR SCUFF PLATE LH

  1. B111783
    Disengage the 4 claws and 2 clips, and remove the rear door scuff plate.

  1. Disconnect the connector. (w/ illumination scuff plate)


2. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH

3. REMOVE TONNEAU COVER ASSEMBLY

4. REMOVE DECK BOARD SUB-ASSEMBLY

  1. B110021
    Disengage the 5 clips and turn up the front side of the deck board.

  1. Remove the 2 bolts and deck board sub-assembly.


5. REMOVE DECK FLOOR BOX FRONT

  1. B110022
    Using a clip remover, remove the 2 clips and deck floor box front.


6. REMOVE DECK FLOOR BOX REAR

  1. B110023
    Using a clip remover, remove the 2 clips and deck floor box rear.


7. REMOVE NO.3 DECK BOARD SUB-ASSEMBLY

  1. B110025
    Remove the 2 bolts, 2 nuts and deck No.3 board sub-assembly.


8. REMOVE NO.2 DECK BOARD SUB-ASSEMBLY

  1. B110024
    Remove the 4 blots, 2 nuts and deck No.2 board sub-assembly.


9. REMOVE BACK DOOR WEATHERSTRIP

10. REMOVE JACK CARRIER ASSEMBLY

  1. Remove the jack carrier support, jack assembly and jack carrier assembly.


11. REMOVE DECK SIDE TRIM BOX LH

  1. B111781E01
    Remove the clip (A).

  1. Using a clip remover, remove the clip (B) and deck side trim box.


12. REMOVE DECK SIDE TRIM BOX RH

13. REMOVE REAR FLOOR FINISH PLATE

  1. B111780
    Using a clip remover, remove the 2 clips.

  1. Disengage the 2 claws and 6 clips, and remove the rear floor finish plate.


14. REMOVE REAR FLOOR FINISH SIDE PLATE LH

  1. B111792
    Using a clip remover, remove the clip.

  1. Disengage the 2 clips and remove the rear floor finish side plate.


15. REMOVE DECK SIDE TRIM COVER LH

  1. B111790E01
    Using a moulding remover, disengage 3 claws (A).

  1. Disengage 2 claws (B) and remove the deck side trim cover by pulling it to inside the vehicle.


16. SEPARATE REAR NO.1 SEAT BELT ASSEMBLY OUTER LH

  1. Remove the bolt and separate the rear No.1 seat outer belt assembly.


17. REMOVE REAR SEAT SIDE COVER LH

  1. B111791
    Using a clip remover, remove the 3 clips.

  1. Disengage the 4 clips and remove the rear seat side cover.


18. REMOVE ROPE HOOK

  1. Remove the 2 bolts and 2 rope hooks.

    HINT:
    Use the same procedure to remove the other side.


19. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH

  1. B111793
    Using a clip remover, remove the 4 clips.

  1. Disengage the 2 clips and remove the deck trim side panel assembly.


20. REMOVE NO.2 ROOM LIGHT ASSEMBLY

  1. B111794
    Using a screwdriver, disengage the claw and remove the room light assembly No.2.

    HINT:
    Tape the screwdriver tip before use.

  1. Disconnect the connector.


21. REMOVE NO.1 TONNEAU COVER HOLDER CAP

22. REMOVE ROOF SIDE GARNISH ASSEMBLY INNER LH

  1. B111795
    Using a screwdriver, remove the tonneau cover holder cap.

    HINT:
    Tape the screwdriver tip before use.

  1. Remove the 3 bolts.

  1. Using a clip remover, remove the 3 clips.

  1. B111796
    Disengage the 7 clips and remove the roof side garnish assembly inner.

  1. B111797
    Disengage the 4 claws and separate the seat belt bezel.


23. REMOVE REAR POWER POINT SOCKET

  1. E108258
    Turn the rear power point socket in counterclockwise as shown in illustration and disengage the claw between the rear power point socket and the rear power outlet socket cover.

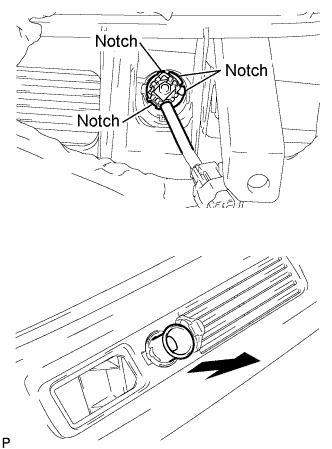

  1. E108238E02
    Align the rear power point socket with the notch on the rear power outlet socket cover, and remove the rear power point socket.


24. REMOVE REAR POWER OUTLET SOCKET COVER

  1. E111296
    Disengage the 2 claws and remove the rear power outlet socket cover.
